I have manufactured my Dual Hens turkey box calls since 2006 and recently decided after this last batch of calls I am working on and/or use up the majority of box call wood that I have on inventory, I will retire the turkey box calls and complete other woodworking projects of interest, our Lord willing of course.

Since I have forty-five (45) calls with all the basic machining completed on them, I will proceed with the steps necessary to complete them.  It should be noted, there are many ways to make a turkey box call and as stated three paragraphs down, I designed my call with the machines and tooling capability that I had without re-inventing the wheel and spending a bunch of money.

However, later (our Lord willing of course) I will do a step by step tutorial from the raw block of wood using my custom jigs and fixtures to fill in the gap.  When using jigs and fixtures, it is best to complete each phase of the woodworking process on all the wood blanks (entire lot) since the set-up time consumes a good amount of time.  With jigs and fixtures, each part will be nearly identical to each other depending on the accuracy of your jigs, fixtures, equipment and the operator skill in using them.

It would be a luxury to have enough drill presses, table saws, planers, routers, etc., to not have to share multiple jigs with them, but that is the way it is sometimes!

Most production turkey box call manufacturers now use CNC machines for mass production, whereas it is not feasible for a small operation due to the initial outlay of cash, unless your pockets are very deep.  Some call makers have the ability to manufacture their own specialized CNC machines, but that was out of the question in my case without a milling machine, lathe and welding equipment, etc.,..............grin if you must!

As stated earlier, my call was designed with the machines and tooling capability that I had without re-inventing the wheel!

There are at least eight (8) different operations; e.g., (surfacing, routing, sawing, etc.) used on the box call body blank (call body) that is depicted a couple paragraphs down the page.

NOTE:  If I were not discontinuing the manufacture of my Dual Hens turkey box calls, I probably would not give detailed information about the manufacture of said calls for obvious reasons.  Maybe this information will help someone desiring to make their own turkey box calls with semi-production in mind.  Some of the fixturing aka jigs would definitely not be feasible for making only a few turkey box calls.  However, the mortise jig based on Pat Warner's design, is versatile for other woodworking projects.

PERSONAL SAFETY AND LIABILITY ISSUES

My goal will be to keep Safety paramount because hand and power tools can do serious bodily harm and death if not used properly, therefore these pages are solely for entertainment purposes only from a personal liability standpoint.  Please read the Legal Stuff page for additional information concerning liability issues before going any further.  Safety glasses and hearing protection is a must although I do forgo the hearing protection many times; my bad!

BOX CALLS AND LIDS

Below are pixs of the machined box calls and lids in various stages of completion as mentioned at the on start of this page.

I used a special set of custom ground molding knives for my Jet planer to cut the radius on the underside of the box call lid.  The knives were installed in the center of the planer cutter head which was designed especially for making special moldings.  I will install them later in the planer cutter head, but will locate the knives and show a pix of them.  Also, I had to make a special "trough" to guide the box call lid blank under the radius cutter knives, of which the trough/platform was bolted to the planer lower table.

Go to my Shop pixs page which gives additional information about making the box call lids.

See this link showing the set-up and changing the regular planer knives.

RADIUS CUTTER BLADES

The edge guides had to be ground down where the rubber feed and exit rollers are located, otherwise there would wear out where the guide strips are located underneath the rollers.

Above set of knives for the box call lid radius which bolted into a special slot for molding knives.  The width of the cutter knives are 2.25 inches and if I am not mistaken, the radius on the cutter knives is 2.25 inches.

With the radius knives in place, you could still use either side of the planer cutting head for regular surfacing wood to the desired thickness, but was limited to about 4 inches on either side of the molding aka cutter knives.  The planer thickness of cut gauge would not be calibrated correctly when the radius (molding) knives were installed.

Once I cut the radius on the entire lot of box call lids, I later removed the auxiliary "trough" and the radius knives from the cutter head and readjusted the feed rollers.   This allowed me to use the planer as needed for other general purpose resurfacing wood.

For full time turkey box call production, a separate planer and/or molding machine would be dedicated for such.  Larger companies are using CNC machines to produce the radius on the box call lid blanks also.

A FEW STEPS IN MAKING THE LID

I checked my inventory of Eastern Red Cedar and selected the boards with as vertical grain as possible and no less than a forty-five degree angle, of which the quarter sawn aka vertical grain works the best for a turkey box call lid in my humble opinion, although flat grain lids will work at times.

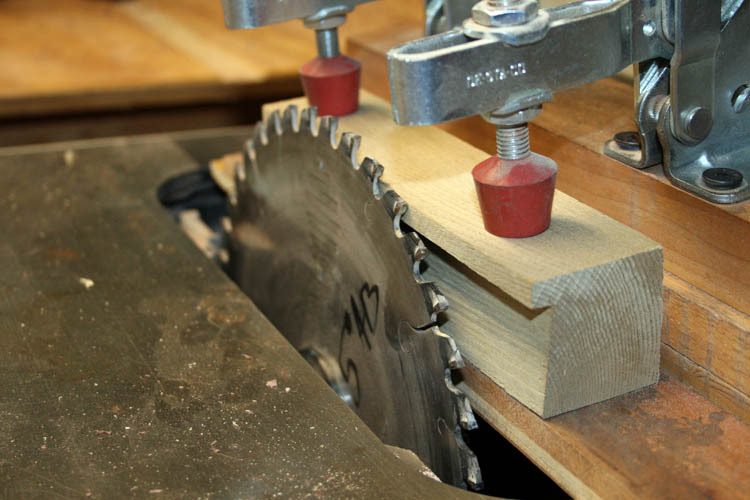

Above lid blanks have been resawed using my table saw the evening of 07-11-2022.  The boards were at least 1.125 inches thick and after ripping them to 2 inches in width, they were then re-sawed aka split in half.  There was a good amount of waste due to bad places in the boards, etc.  All the lid blanks were then planed down to a little over .375 inches in thickness.  The boards that had knots in them and bad grain, quickly blew apart when going under the planer cutter head knives.

INSTALLING RADIUS CUTTER KNIVES

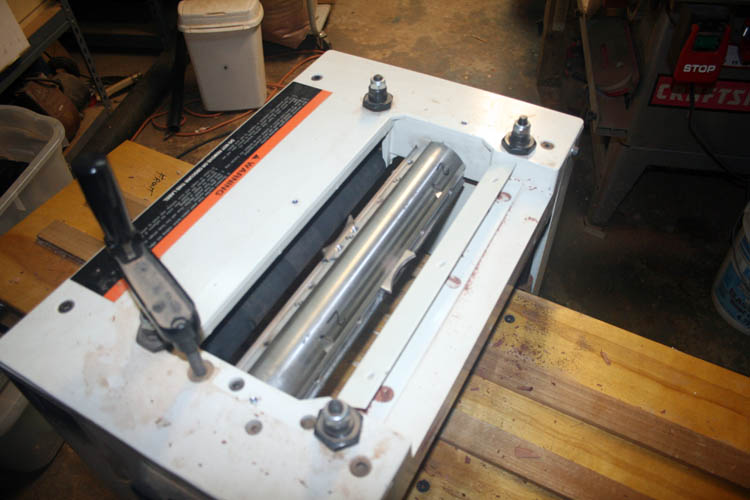

The protective shield over the planer/molder cutter head had to be removed from the Jet planer/molder exposing the cutter head.  Setting the planer up with the radius cutters takes some time and patience, but I got them installed on 07-11-2022 and will add a few pixs.

As shown in the pix above, the molding cutter aka radius cutter is about 3/16 inch above the regular planer knives and the feed rollers have to be set that amount lower.  I have set-up blocks made for that purpose.

You can see two of the three radius aka molding cutters in the above pixs.  Also, I have the trough installed that will guide the lid blank underneath the cutters.

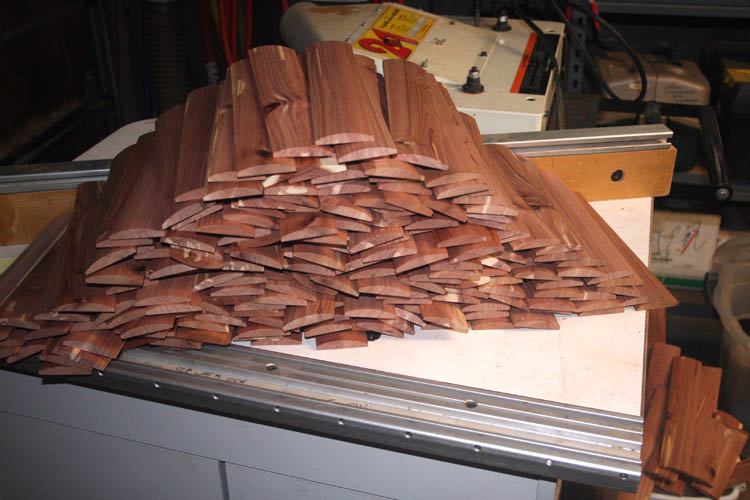

Everything worked out real well cutting the radius on the lid blanks.

After the radius was cut on all the lid blanks, I set up the small crosscut table saw sled to cut the lid blanks to their final length.  There was a good amount of "culls" due to bad knots and blown out places in the lid blanks, but ended up with a good amount of lid blanks; probably more than I will use.

Some of the lid blanks yielded three (3) lids, but two blanks was about normal due to the bad places, etc.

I will definitely have more lid on hand than I need, but hopefully will use them up.

VERTICAL GRAIN AKA QUARTER SAWN

In the pix above showing an end view of the box call lid, the grain is running nearly vertical which in my humble opinion gives the best sound.  On the other hand,  when the grain is running more horizontal aka plain sawn (opposite from the grain in the above pix), the lid is more flexible and doesn't have the stiffness required.  Inlaying wood marquetry, wood strips and wood purfling in the top of the lid also stiffens the lid, but vertical grain orientation works the best!  The vertical grain lid grips the box call sound boards much better.

WOOD SAWN DIAGRAM

Most sawmills use the plain sawn method to process logs after squaring the log, therefore you will get a few pieces of wood that is true vertical or quarter sawn from the log as depicted above.  Quarter and rift sawn wood is definitely more labor intensive!  Musical instruments such as guitars, mandolins, violins, etc., utilize quarter sawn wood for their tops, backs and sides which yield the best volume and timbre.

Above image from the internet!

Web page updated by Bill aka Mickey Porter on 07-17-2022.

There was at least forty (40) percent waste which is about normal for Eastern Red Cedar that has plenty of knots.  I will use the cedar lids split into smaller pieces in our fire pit when doing a "winy" roast for our Gonzales Grand Kids.

My next step up will be to drill the pilot hole and countersink for the box call body screw using a drill jig.

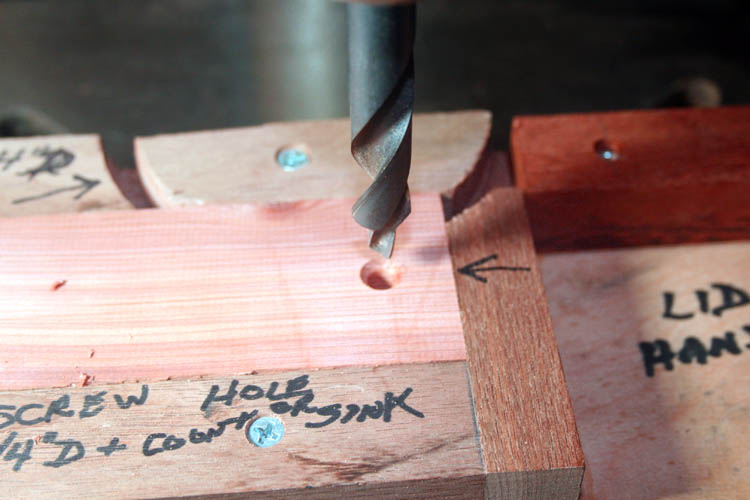

DRILL PILOT HOLE AND COUNTERSINK FOR SCREW

After the blank has the radius cut on it, then cut to length, it is time to drill the pilot and countersink hole for the lid screw.

The 2 inch wide lid is positioned in the jig with the lid screw hole centered 5/8 inch from the end of the lid and use a 1/4 inch diameter drill bit with built in countersinked for using a Phillips # 8 flat head screw positioned below the level of the lid.

As stated before, the above jig is dual purpose and used to position the 2 inch radius cut-out portion of the lid handle using a 4 inch diameter hole saw in the drill press.

When time permits and I have the above jig free from drilling the tapered pilot in the box call body, I will do a set up showing the 4 inch diameter hole saw sawing the radius portion out for the lid handle.

LID HANDLE RADIUS

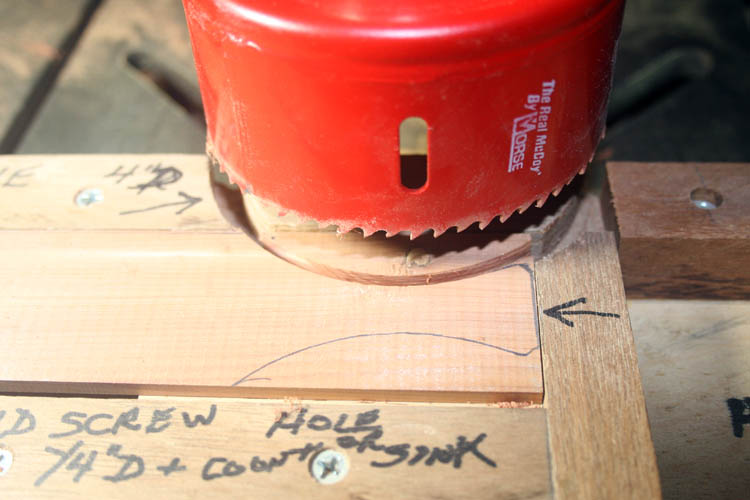

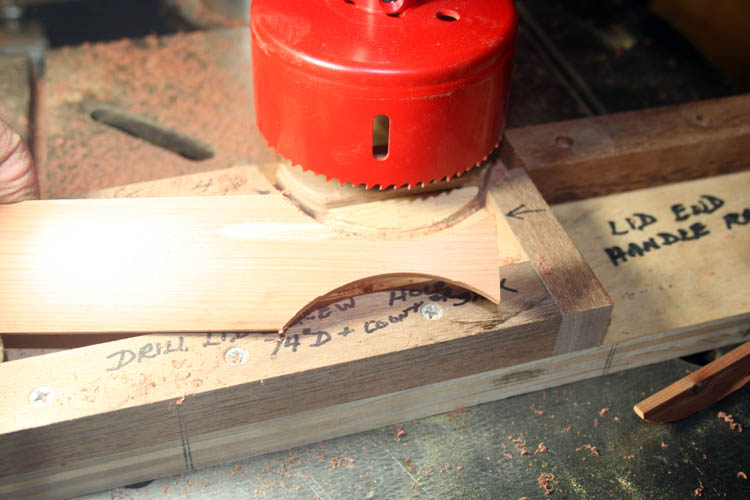

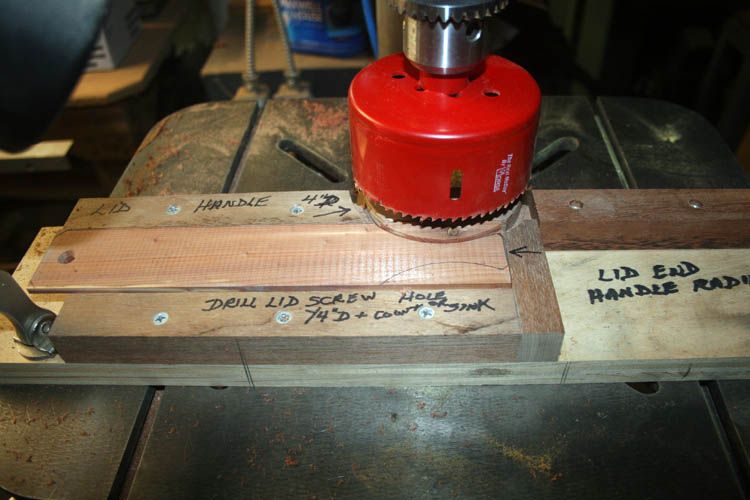

I located my 4 inch diameter hole saw and set the jig up to saw the radius portion of the lid handle.  This is a newer 4 inch hole saw made by Morse and cuts much better than the older one, circa. 2006 I was using; wonder why...........grin if you must!

The Morse hole saw does a great job in cutting the radius on the lid handle requiring very little sanding.

The lid width is normally 2 inches wide when I saw the radius portion of the lid, however this lid has already been sized to 1 3/4 inch in width, but adequate for demonstration purposes.

The lid is flipped over 180 degrees and the other side is sawed as depicted above.

NOTE:  I later installed a stop block to the left of the jig to prevent the hole saw from trying to move the lid blank to the left since the hole saw in rotating in a clockwise direction.

LIDS CONTINUED

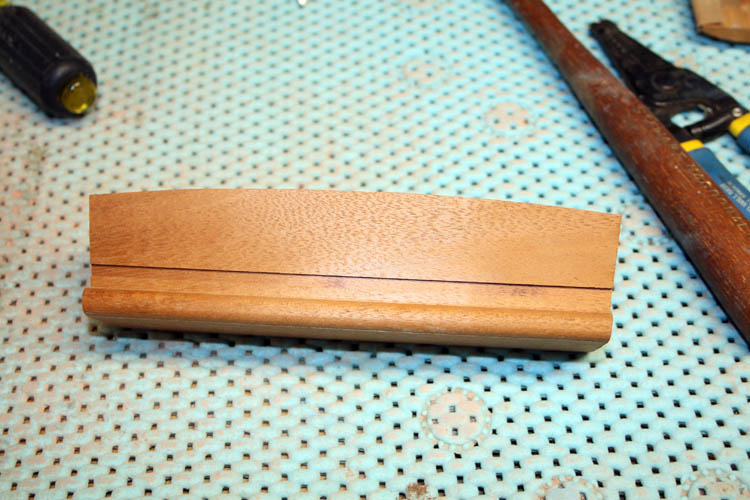

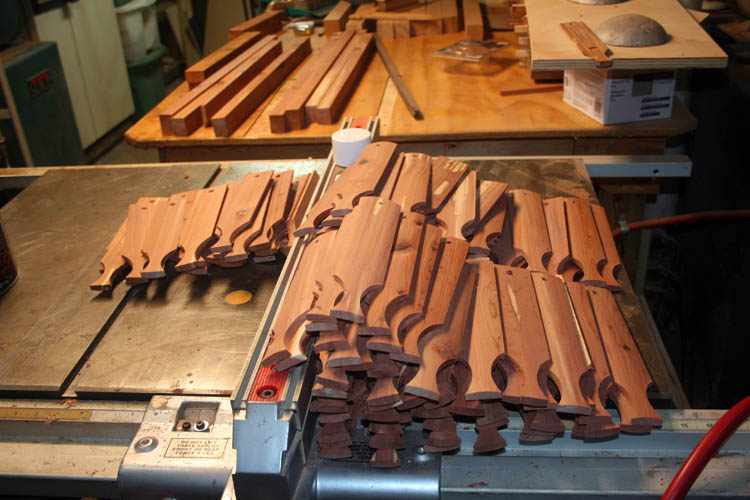

The above lids with the handle radius cut, hole drilled for the screw.  My next operation will profile cut the width of the lid using a jig and flush cut router bit in the router table.  I am guestimating there is about 7 gallons of lid blanks that didn't make the cut; e.g.., bad knots, chip out, etc.  I will count the lids later to ascertain how many there are.

Above lids will be routed for the wood marquetry aka wood purfling as needed, drill for the turkey track button and sand a forty-five degree angle on each end.

There might be more than seven (7) gallons of waste aka culls.

Web page updated by Bill aka Mickey Porter on 07-04-2022 and 07-13-2022.

WIDTH OF LID ROUTED TO  FINISHED SIZE

The lid after the hole and countersink for the lid screw is completed, the lid blank is placed on a router profile jig which is indexed with the pilot hole for the screw being 1/4 inch outside diameter.

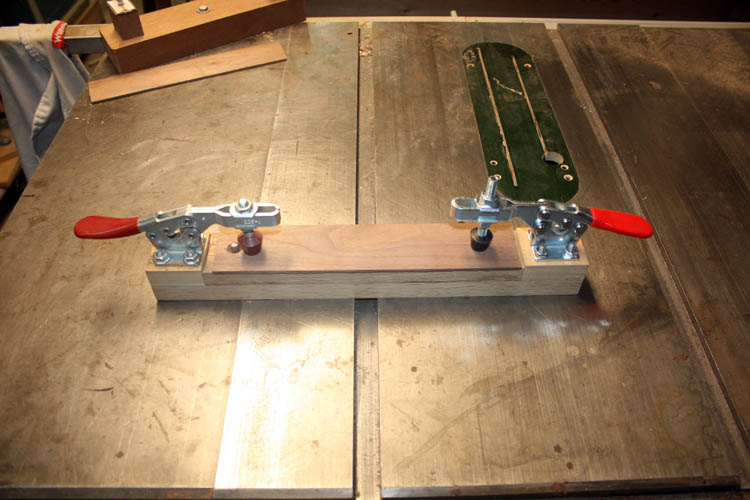

I will show the profile jig and the lid blank in position only, since I have the router table set up for something else at this time.  I use a flush cut two fluted carbide tipped router bit to cut the profile.  You could set the table saw up and do the same thing by removing 1/8 inch from each side of the lid blank.  As the ole saying, "Six of one and half dozen of another."  The table saw would be much faster.

You could eliminate this operation by sizing the lid blank to 1.750 inches in width, but would have to change the width in the trough when cutting the radius on the lid using the planer.

NOTE:  Above for demo only since I route to width the blank after the handle radius is cut.

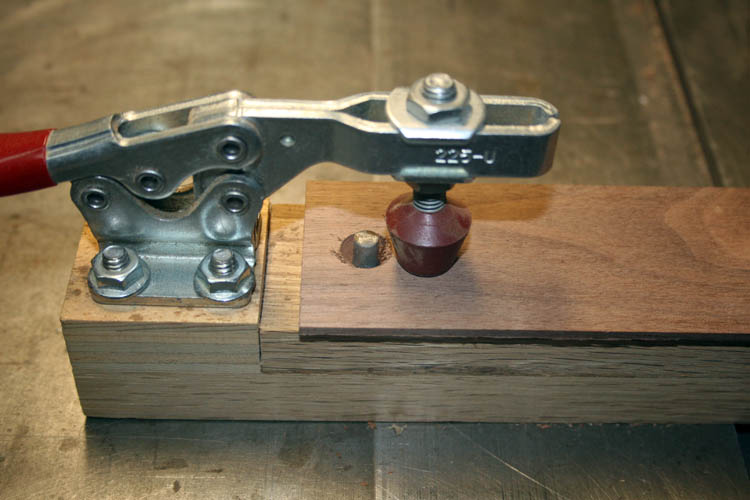

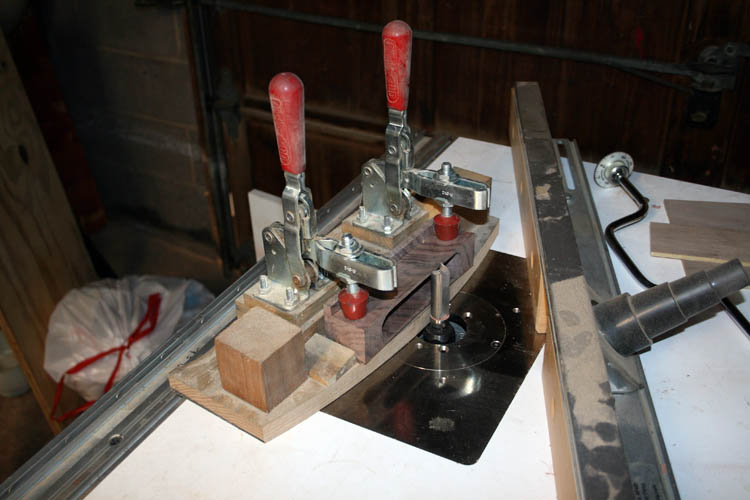

A close up view of the width profile jig with the base of the jig riding against the router bit flush cut bearing.

This profile jig doesn't have much width to it and you definitely have to pay attention to where your hands are.  I keep my left hands/fingers on the end of the red handle and my right fingers and thumb pushing the side of the jig away from the router bit.  You are only removing at the most 1/8 inch from each side of the lid if the lid was centered in the handle cutting jig.  Sometimes, the lid blank width is barely over 1 3/4 inches with just enough width to clean the edges during the routing operation.  This type of operation would not pass OSHA's safety standards for sure!

The jig could be made safer by adding much more width and length to the rear of the clamps where the profile is being routed keeping your hands/fingers further away from the cutter aka router bit.

Web page updated by Bill aka Mickey Porter on 07-14-2022.

DRILLING HOLE FOR THE TURKEY TRACK BUTTON

The above is a dedicated jig for positioning the lid for drilling the turkey track button and/or eagle medallion.  The bottom of the jig has a concave radius to match the radius of the lid.  Appropriate drill bit is used and the jig is positioned under the drill press chuck for proper alignment and the depth stop is set on the drill press for the required depth of cut.

NOTE:  I had a set of special molding blades ground to produce the concave cut in oak hardwood for usage in making several of the jigs depicted in this tutorial.

ROUTING THE LID FOR WOOD MARQUETRY AKA WOOD PURFLING

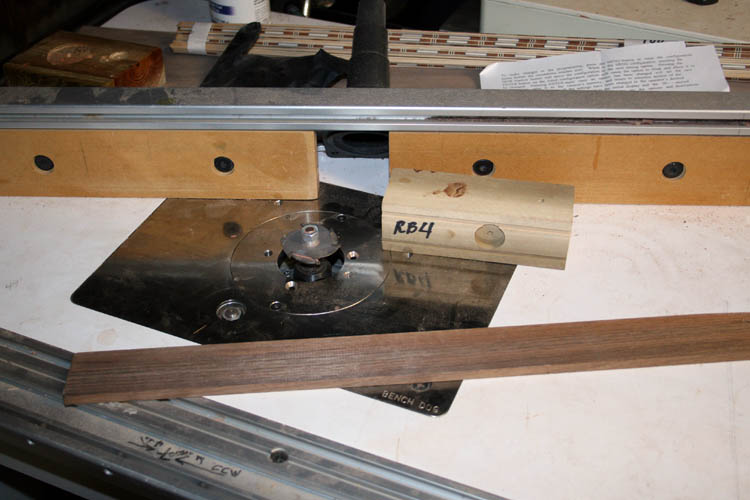

The router table is set up for using the RB4 wood marquetry and used a sacrificial board clamped to the router table fence which reduces end snipe which means one of the router table fence members is not in "perfect" alignment with each other.  I used the band saw to make a rough cut out in the sacrificial board for the stacked slotting cutter that matches the pre-war Gibson Mastertone banjos style # 4 wood marquetry.

Since the slot for the wood purfling would cut into the handle portion if you make a continuous and not stop the cut short, I placed a start and stop mark on the sacrificial fence; a black line to the left and blue tape to the right.

FORTY-FIVE DEGREE ANGLE ON EACH LID CORNER

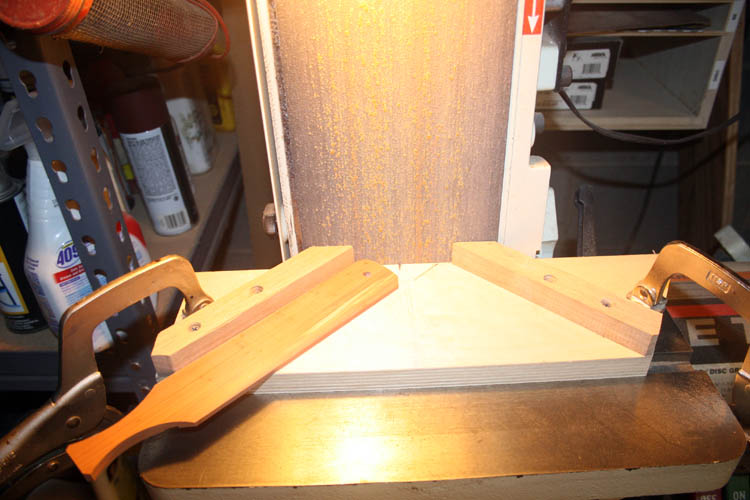

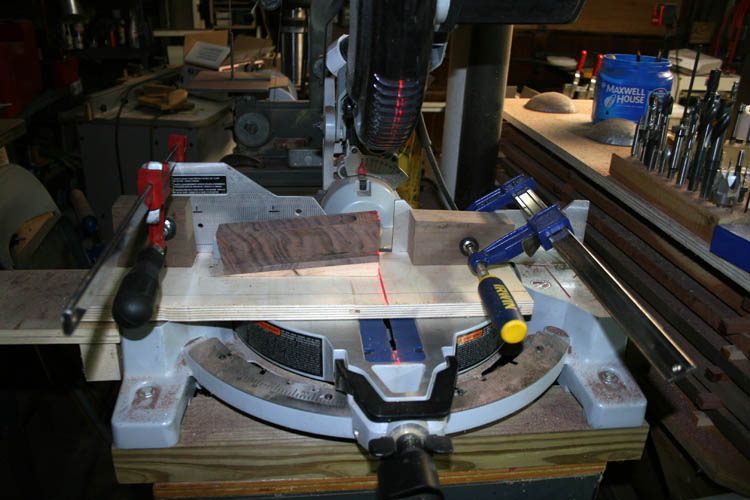

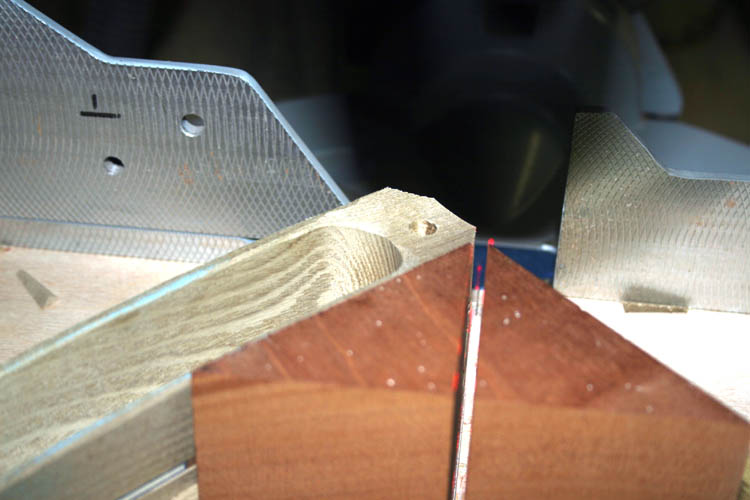

I used my forty-five degree miter sled to saw the corners off the box call lid and used the left miter for cutting the front of the lid and used the right miter for cutting the handle portion corner of the lid.

I use the above forty-five degree miter sled for many projects.

You cut on side of the end and flip the lid over and keep the lid as straight as possible when the radius portion of the lid in on the miter sled.

You have to adjust the end stops for each side of the sled as is obvious due to the lid handle design.

It is best to sand the forty-five degree angle on the handle end of the lid because as depicted above, the end is unsupported and you will lose a lid or two from chip out.  If I were doing a batch of lids, I would temporarily add a piece of the radius removed from the lid and affix it to the miter sled to prevent chip and tear out.

This jig is about as simple as you can get!

There are no stops on this jig, but a reference line when you sand the forty-five to the correct width.

This is free hand with no stops to control the width of the forty-five degree taper.

Web page updated by Bill aka Mickey Porter on 07-04-2022,

SANDING HANDLE RADIUS ON LID

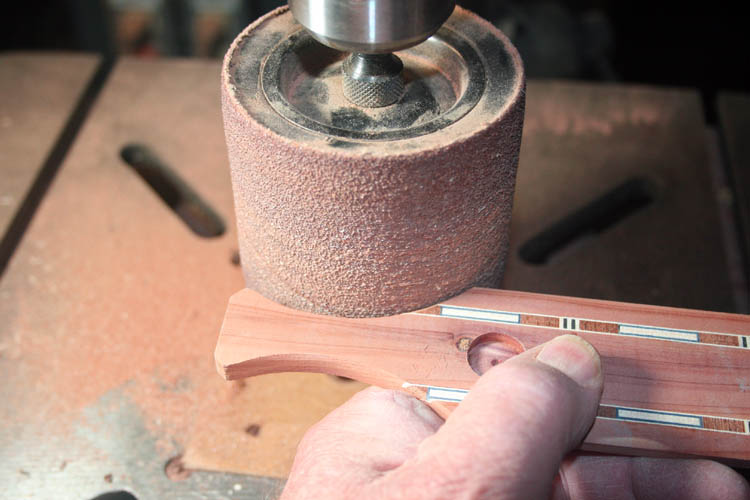

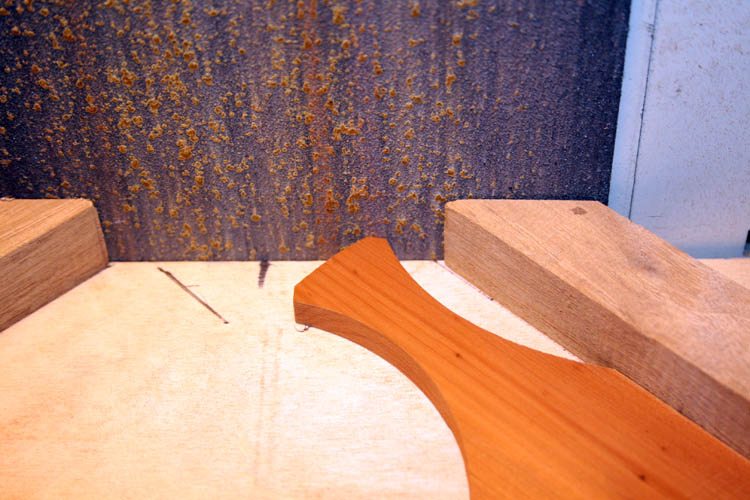

I use a 3 inch diameter sanding drum with a 80 grit sanding disc. in the drill press to smooth up the edges from the hole sawing operation and remove the over hang of the wood purfling aka wood marquetry.  A vertical drum sanding machine would be the way to go, but never owned one.  I finish sanding with a couple Porter-Cable # 330 1/4 sheet palm sanders of which are obsolete now and replaced by the # 380 model.

You could go a little more high tech and use a flush cut router bit and pattern to trim the wood purfling aka wood marquetry overhang and pay attention to the grain.  I have not tried this method and the wood purfling might blow out since it is very fragile.  You would still have to sand the edges of the lid handle radius portion, so the above method is probably the best for me!

Web page updated by Bill aka Mickey Porter on 06-25-2022.

TURKEY BOX CALL BODIES

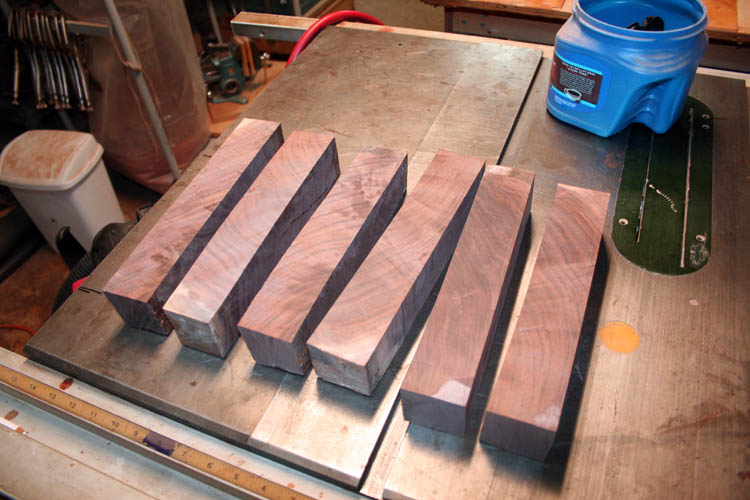

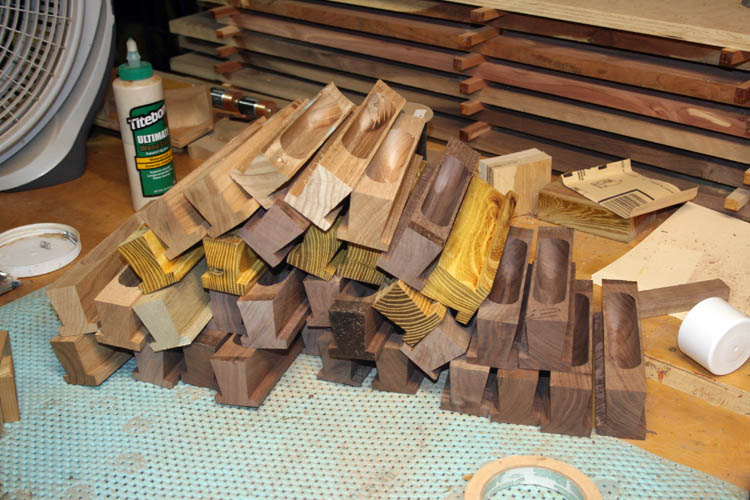

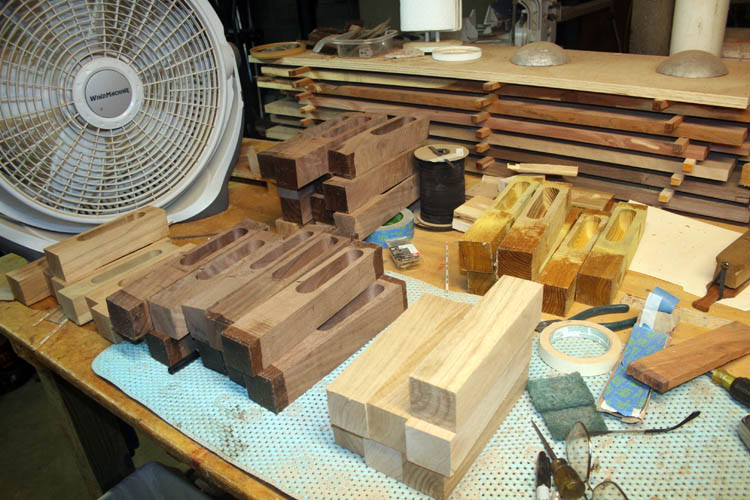

All the major woodworking machining is completed on the above calls.  I normally excavate the torpedo nose taper using a DeWalt 3 HP plunge router with a special dedicated mortise jig just for that purpose.  The router bit used is a standard off the shelf router bit.  I routed two torpedo nose tapers on a wood blank that would yield two box call bodies in the pix below.

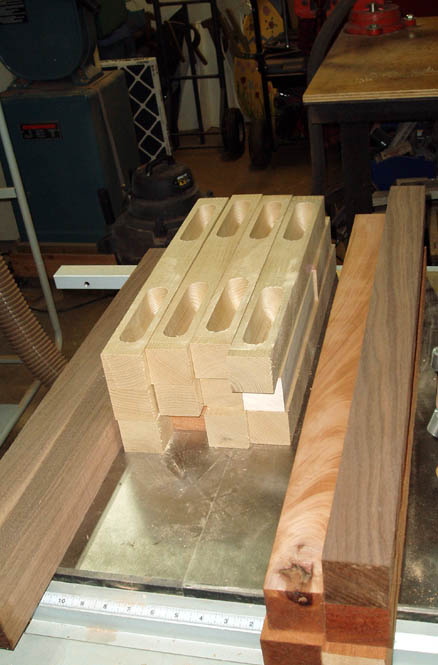

Here is an archived pix from way back when:

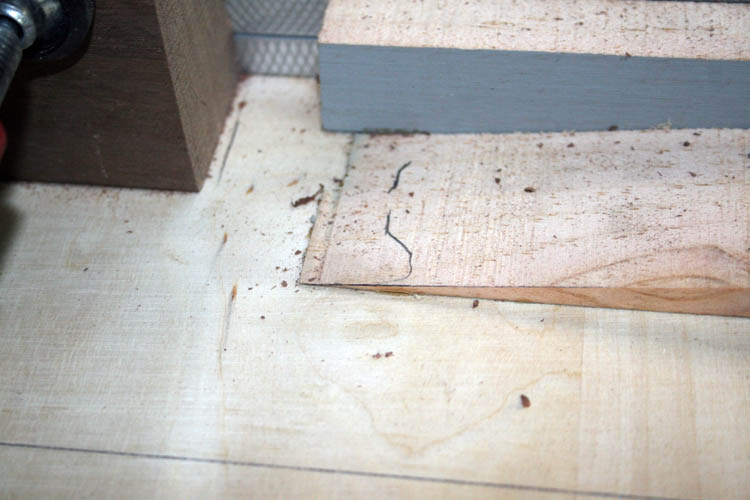

NOTE:  While finishing up 42 of the 45 call blanks on 06-15-2022, I noticed that one of the last calls that I finished was Honduras Mahogany.  It was observed that the call body was from the mahogany blank in the above pix; second row from the right of the pix.  See pixs below for comparison:

I apparently cut the end of the blank back at least an inch to try and avoid the knot area, of which turned out real beautiful!

MORTISE JIG

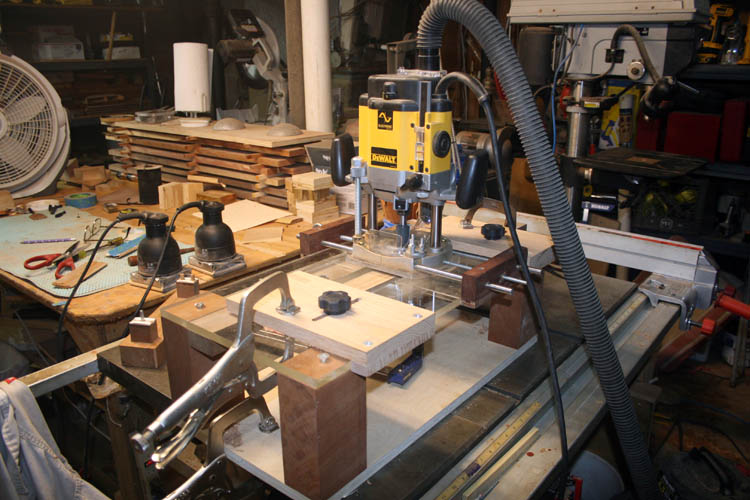

Below is a pix of the mortise jig (Pat Warner design) which is nearly identical to the one dedicated for my turkey box calls only except for the north to south stop blocks.  This jig I use for various mortise operations needed and its construction is hyperlinked here:  My turkey box call mortise jig has fixed stops for positioning the wood blank onto the mortise jig and the router base guides are adjusted to center the mortise in the wood blank.  I normally use two (2) inch square box call blanks 12 inches in length, however my mortise jig can accommodate less than 2 inches in width using wood positioning shims as necessary and of course wider blanks which is not feasible.  The turkey box call mortise jig and router are normally not readjusted, unless as noted above.

My dedicated turkey box call mortise jig is under the wood box in the pix below, top left, of which I store drill bits and other stuff on top of the box.  Since that was a proprietary jig, I kept it out of view from visitors to my shop...................grin if you must!

One of my DeWalt 3 HP plunge routers is set up and dedicated for turkey box calls only and the jig below is my general purpose mortise jig.   I used the below mortise jig to route the mortises on my curly maple end tables.  I used this jig instead of the square chisel mortise machine, of which making a 1/2 inch width mortise in hard curly maple is a little difficult with a light duty machine.

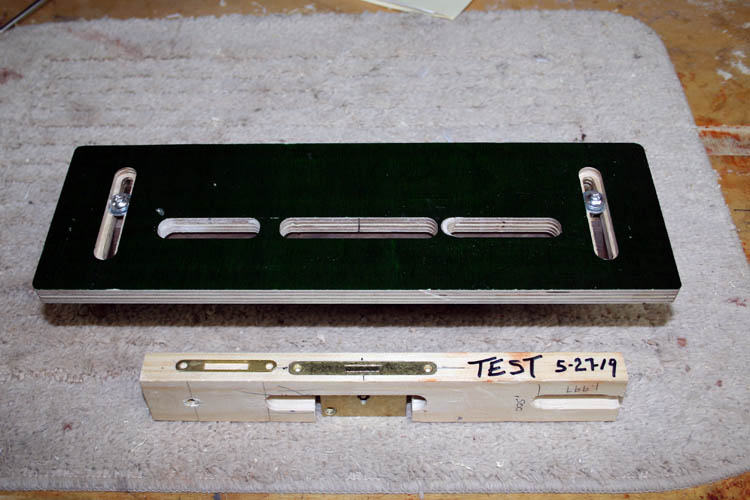

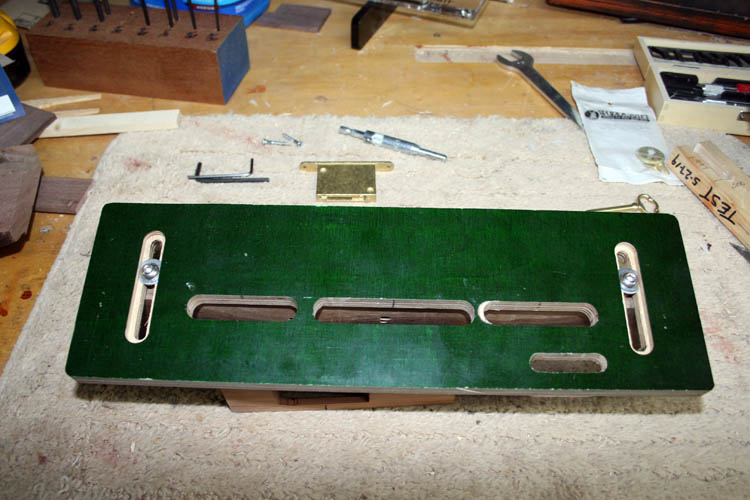

I also used the above mortise jig when making my full mortise lock jig.

CLOSE UP OF THE BOX CALL BODY

The torpedo nose taper of the box call has been routed out on the blank.  It takes some serious jigs and fixtures to arrive at this point for a professional looking call body.  To obtain a near burn free route, you must plunger the router bit about 3/8 inch at each end of the blank and move in a north to south and south to north direction which is controlled by the jig.  If you stop the router, you will burn wood even with a new router bit!  The plunge router depth stop is set and rarely if ever moved.

As stated above; it takes at least eight (8) separate operations to arrive up to this point in making my Dual Hens box call (body) only!

Side view of the box call with the radius profile routed (shaped) on the sound boards, end of call tapered and the routed slot for the wood marquetry inlay.  The base area has also been routed aka half round.

End view of the call showing the concave routed end which matches the radius of the lid, side taper and base routed.  My Dual Hens calls are from one piece of wood, no laminations.  I try and orientate the grain as vertical as possible and believe the quarter sawed blank gives each sound board more stiffness and other desirable tonal qualities.

Pix not available due to pc troubles.

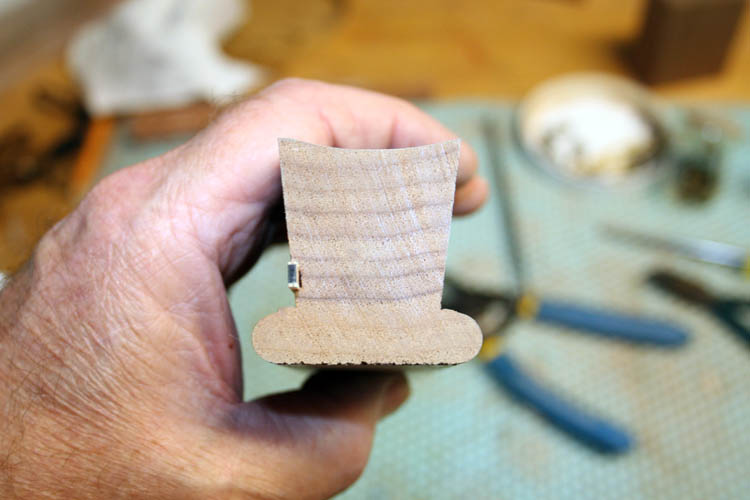

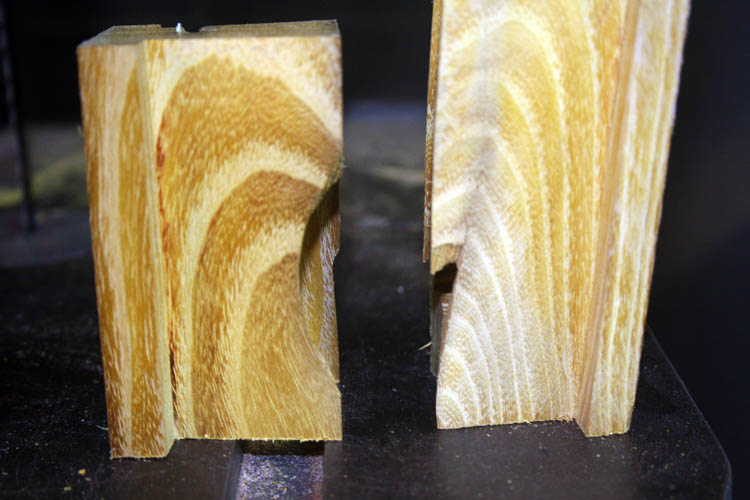

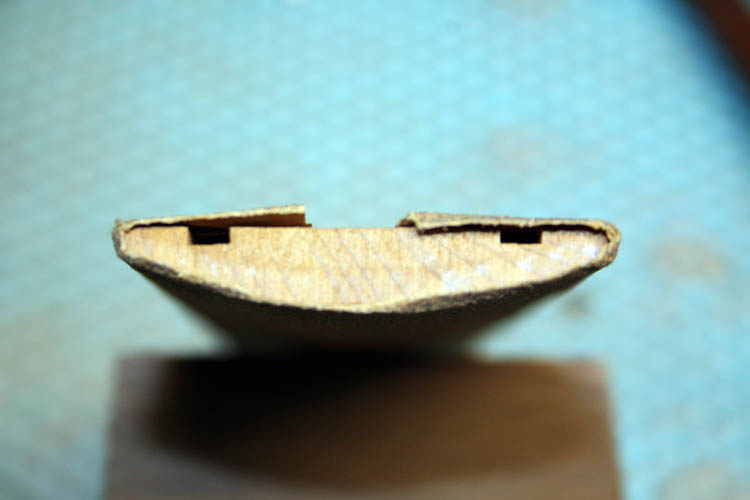

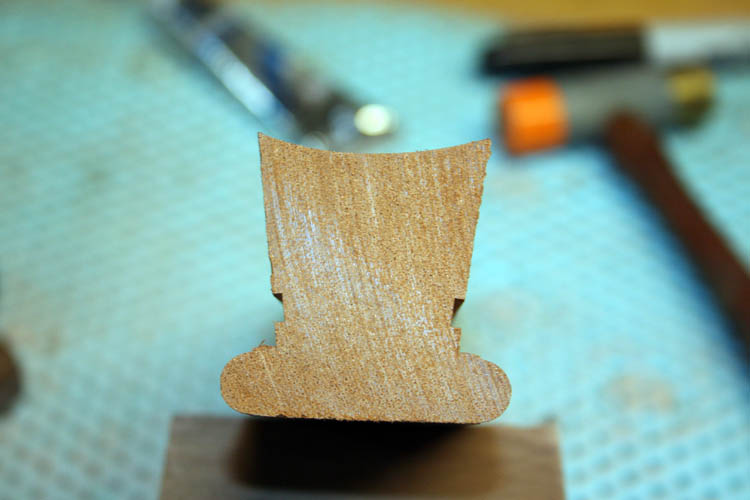

Above a slice of the turkey box call showing the inside profile (end view) of the call body.  Notice the center of the sound boards (side view) are thinner than the top of the sound boards.  The taper is controlled by the router bit diameter, profile, depth and the angle of the sides.  No two calls will sound exactly alike, even though machined to the same thickness due to the properties (density), grain structure and orientation of each individual piece of wood, even though from the same billet of wood!

See shop pixs page for additional information.

Web page created by Bill aka Mickey Porter on 06-01-2022.

DRILLING THE TAPERED HOLE FOR THE LID WOOD SCREW

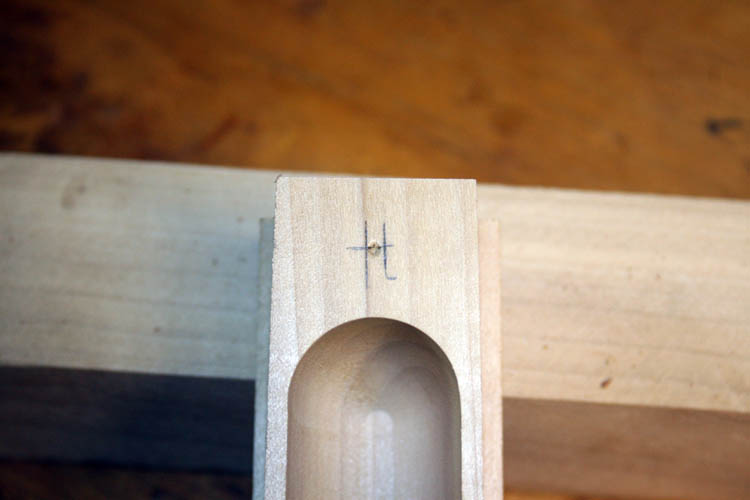

Below are pixs of a simple locator for positioning the tapered drill bit and countersink hole in the body of the call to attach the lid to the call.  I am using a # 8 brass wood screw 1.5 inches in length.  I am using a 11/64" tapered drill bit with adjustable and removable countersink.

The rear of the above jig has a ledge to abut the box call body.  The left portion of the jig is used to hold the 2 inch wide lid blanks in place and using a 4 inch diameter hole saw, cut the handle portion of the box call lid.  You flip the lid over and complete the handle shape. The jig is also used to drill the hole for the lid screw.

I drill the tapered hole in the body of the call before sanding the forty-five (45) degree taper on each end of the call and add the wood marquetry inlay after testing the call for sound resonance, etc.  These two pixs are out of sequence, since I drill the lid screw pilot hole before installing the wood marquetry....my bad.  The countersink also provides a recess cavity for the lid spring to rest in.

NOTE:  Unless your box call body width at the base is consistent from one call to another, a locator jig as above will not work.  It takes very little time to mark the center with a fine point pencil; in my case, 1/2 inch from the end of the call.  First draw a line 1/2 inch from the end of the call across the call width, then mark a line 20/32 from each side and you have a witness to where the center of the call body is located.  Using a scratch awl or spring loaded center punch, indent the wood for the drill bit point.

TRANSFERRING THE LID RADIUS TO THE SOUND BOARDS

Before adding the wood marquetry inlay to each side of the box call and the lid, I first match the radius (curve) of the lid to the box call sound boards.  I initially use 80 grit aluminum oxide sanding paper double stick taped to the radius portion of the lid and position the sandpapered lid on top of the box call and sand back and forth the length of the sound boards.  It is imperative to keep the sand paper backed lid equally spaced or centered on the box call for a near perfect match or mate up of the lid to the sound boards.  I then finish with a 100 grit aluminum oxide sanding paper attached to a lid which matches the radius portion of the lid.

It takes about a dozen or more longitudinal strokes back and forth to mate the lid radius to the call body sound boards depending on the hardness of your wood.

INITIAL TUNING OF THE BOX CALL

With the lid attached to the call body with the brass wood screw and spring in place, the call is tested for sound quality which is not an exact science.  Any tuning necessary, the inside of the sound boards are sanded using 150 grit sand paper; just a few strokes at a time and then check the sound.  Sometimes, a call lid will have to be replaced to give the desired sound; e.g., tone, volume, pitch, etc.  As noted elsewhere on this website, different woods give various pitch sounds, whereas the harder density woods will render a higher pitch tone.  I believe Butternut wood gives a much lower pitch sound with all things being equally compared.

I have tried different species of wood for the lid, but aromatic red cedar works best for my call body and gives the sound I like, but hearing is definitely subjective.

The majority of box call makers will tell you, your lid needs to be a harder wood than the call body, but that is very subjective to say the least.  Neil Cost advocated that, whereas he was the early leader icon and who doesn't want to follow the leader?

Once the desired sound is obtained, I will add the wood marquetry inlay to the call body and call lid and let it cure overnight.

ADDING THE WOOD MARQUETRY INLAY

The wood marquetry aka wood purfling I am using was originally used on Gibson pre-war banjos, mostly their # 4 model.  I had this wood purfling reproduced in Erlangen, West Germany in the early 1970s and I am sure the vendor Franz Dotzauer out sourced it to a company that specialized in the manufacture of wood purflings aka wood marquetry.  This wood purfling aka wood marquetry is available from several Musical Instrument supply houses here in the USA.  Dotzauer's son Gerard, did all the correspondence for his Dad Franz and Gerard supplied the required wood purflings aka marquetry when I started making turkey box calls, but currently is not able to supply said marquetry aka wood purflings.  Several music supply houses offer the same wood purflings (retail price only), but they are now very expensive for my usage; e.g., at least $ 9.00 per 31.5 inch length strip.

To route the slot in the box call body and the lid, I use a dedicated stacked slotting cutter in my router table (Bulldog brand) router which has a 3 1/4 HP Porter Cable router with crank screw up lift, whereas the slotting cutter matches the width of the wood marquetry.  I adjust the table fence for depth of cut and the router lift for the proper height of the cut, of which I will show in detail the next set-up of the same.  The call body has to be elevated at about a six (6) degree angle using a tapered wedge double stick taped to the router table in order that the routed slot will be perpendicular or at a right angle to the slope aka taper of the call body sound boards.

CALL BODY MISSING ONE ROUTED SLOT FOR MARQUETRY WOOD INLAY

While working on half dozen calls the afternoon of 06-07-2022, I noticed on one call body, there was only one routed groove for the wood marquetry inlay, therefore I set the router and router table up to make that one missing cut.

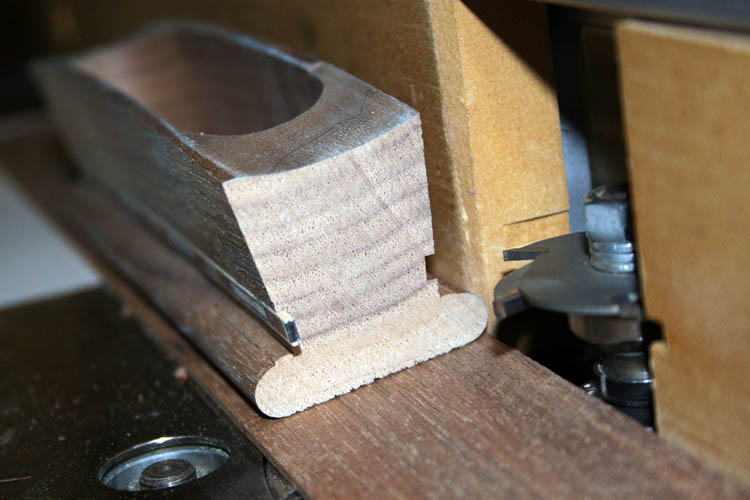

As depicted above, the slot aka groove for the wood marquetry wood inlay is missing.  Didn't notice it until I got ready to glue the inlay in place................grin if you must!  For whatever reason, I have the wood grain in a horizontal orientation on this box call and normally have the grain running vertical.  Sometimes, the wood blank is sized too small, etc..

The basic set-up to route the groove for the inlay strips on the box call body; 1)  Install dedicated slotted cutter for the RB4 wood marquetry inlay, 2)  Add the 6 degree taper board to the router table whereby routed slot will be at a right angle to the box call,  3)  Adjust the router fence for the proper depth of cut, 4)  Adjust the router height.

Normally, when I do the entire lot of box call bodies for the wood marquetry inlay, The base of the call doesn't have the half round radius on the call, just square at that point.  The slot for the wood marquetry inlay is at the proper height and depth on the call body.  The camera lens angle distorts the true  parallel orientation of the box call side to the router fence.  If your router table fence to the left is not set properly, you will get a snipe cut at the end, therefore a much safer method is to reference the tapered sound boards against an auxiliary board positioned above the slotting cutter.

Above pix of the board mentioned above which prevents end snipe.

Web page updated by Bill aka Mickey Porter on 06-07-2022.

In the mean time, check out my ceramic and wood pot holder pages which gives a detailed set-up of using the slotting cutters and adjusting the router table fence and router lift which is applicable to routing the turkey box call body and lid.

The end view of the call body several paragraphs above will make clear what I am describing.

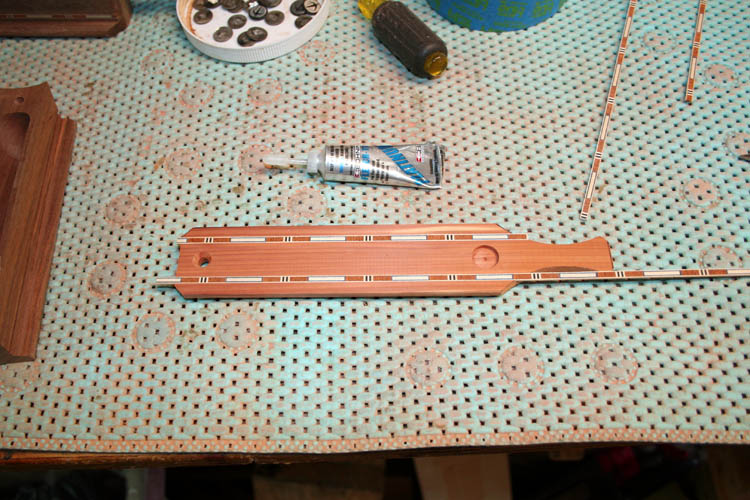

I center the pattern of the wood marquetry wood inlay into the routed slot as depicted above.

I normally match the wood marquetry wood inlay at the front of the call (screw area) to keep from wasting the inlay.  I use mostly Bohning Fletch-Tite Platinum glue for gluing the wood marquetry aka wood purfling in place.

ADDING THE TURKEY TRACK MEDALLION

I started out using a Eagle medallion aka button on my early calls and later went to the turkey track pewter button copyrighted by Sid Bell, now deceased.  The turkey track pewter button is available from Jeff Karner who purchased Sid Bell's molds, etc.

In a couple pixs above, you can see where I have ground the back of the turkey track button flush.  I set up my drill jig and used a 29/64 inch diameter spur drill bit that had the spur ground down to nearly flush with the flat cutting flutes similar to a Forstner bit.  I used Bohning Fletch-Tite Platinum glue to keep the turkey track medallion in place.

SANDING THE 45 DEGREE TAPER ON EACH CORNER OF THE BOX CALL

Notice there is also an inclined angle plus the 45 degree taper on each corner which is controlled by the jig.

The width of the angle desired is totally free hand.

I position each corner of the box call body onto the sanding sheet on a flat surface such as the table saw top and push the box call away from myself, one stroke, not back and forth.  It takes at least ten (10) strokes to get the 80 grit sanding lines out from the 6 x 48 inch sanding belt.

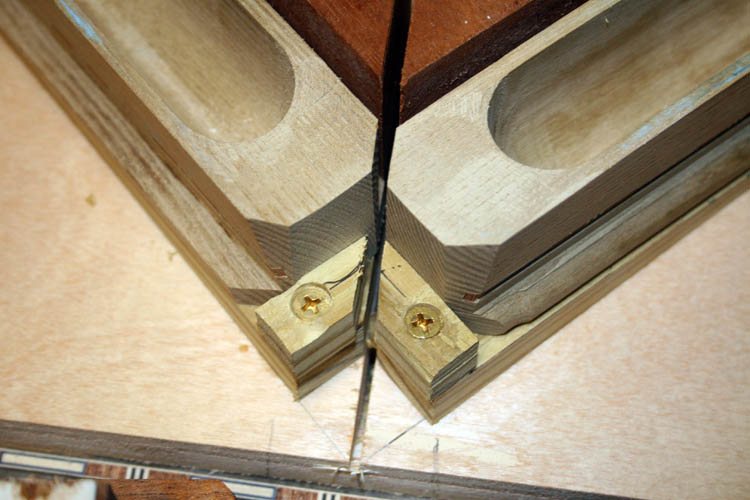

ANOTHER JIG TO REDUCE HAND SANDING

NOTE:  I could have made an accessory (elevation blocks) to attach to my forty-five degree miter sled to accomplish the same thing using a crosscut 10 inch blade on the table saw and probably would save some sanding time.  I looked at using my 45 degree miter sled to cut the 45 degree angle on each corner of the box call body, however with the appropriate tapered elevation block underneath the call body, the 10 inch diameter saw blade was not large enough in diameter, therefore I canned that idea.  To not be outdone, I made a jig just for the 12 inch diameter miter saw for the required cuts; pixs below:

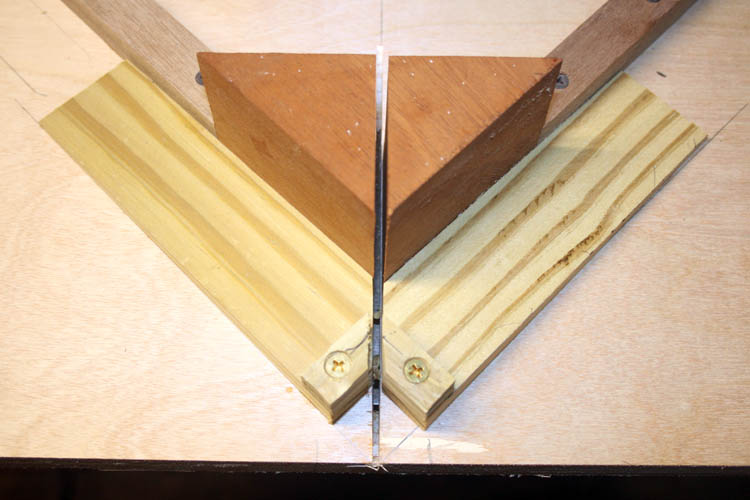

I used scrap aka unallocated wood to make the above simple jig.  I will later affix the permanent length stops.

Another view of the jig.  The mahogany block positioned for the 45 degree angle cut and the pine board tapered wedge elevates the call body for the proper angle.  The rear blocks has 1/4 inch diameter hex head bolts to attach to the miter saw fence existing holes for positioning and securing the jig to the miter saw base.

I field tested the jig and it works fine and leaves a smooth cut which will required little or no sanding.

I will add stop blocks at the front of the call to control the width of the cut and remove the rear stop since any variation in box call length will manifest itself when cutting the bevels.  I also added an extension of the above 45 degree mahogany block on each side to prevent any side to side movement of the call body.

FINISHED AND FINE TUNED THE JIG

ADDED DOWN STOP AND ADDITIONAL THICKNESS TO BASE

As stated below, the jig works great, however with only one 3/4 inch thickness base, it was easy to saw through the base member without a down stop cut block to reduce the blade depth travel.

The jig works great and reduces the sanding of the angles to nil and the stops are set where a shorter or longer call body will not change the angle and width of the miter cut.  There is no way to cut through the base of the jig with the stop temporarily in place.  I will store the down stop block with the jig and C clamp it into position when needed to save storage space.

I have eleven (11) machined Sassafras box call bodies that I did with the six (6) figured walnut blanks and look forward to using the jig to complete the Sassafras calls.

Web page updated by Bill aka Mickey Porter on 06-22-2022.

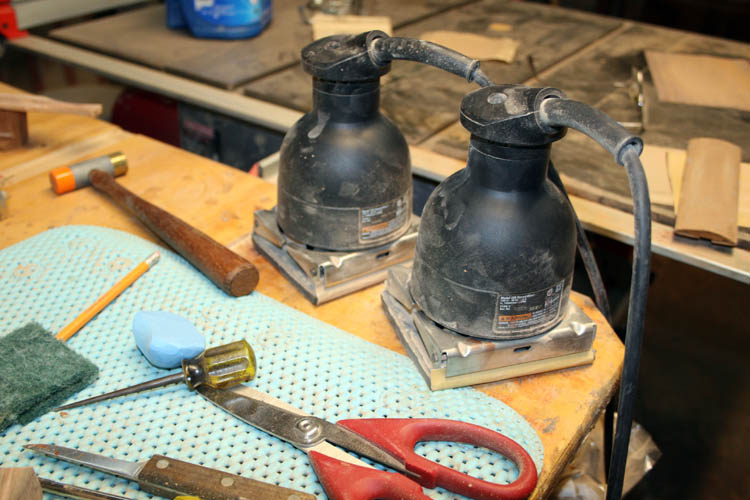

All other sanding is done with two (2) Speed Bloc hand sanders; one 150 grit and the other 320 grit.  I change the sanding paper about every 6 or more calls.

The above hand sanders get a good workout on all my small projects.  The above are made by Porter-Cable and my original one I used while in the music business was made by Rockwell and the Porter-Cable hand sanders are the same.  You obtain four (4) sanding sheets from a standard 9  x 11 inch sanding sheet.

NOTE:  I was thinking about purchasing another Porter-Cable Speed Bloc # 330 palm sander, but they are discontinued and replaced by the 380 model which has a dust collection bag.  The ole saying I like to use, "If it ain't broke, don't fix it."

APPLYING FINISH TO THE BOX AND LID

I have found over the years, the less finish applied, the call is more resonant with more tone and volume. Too much finish will definitely mute the sound of the box call with all things being equally compared.  Therefore, I apply one coat of sanding sealer and at least one coat of lacquer.  I normally will lightly buff the call and lid with a Scotchbrite green pad between the coat of sanding sealer and the finished coat of lacquer.  I basically remove about all the sanding sealer from the torpedo nose cavity in the call body and do not apply any lacquer to that area.

I use Deft sanding sealer and Deft gloss lacquer using the aerosol spray cans to apply finish to my box calls.  I do have production type spray equipment for other projects as needed, however short runs of spraying calls makes clean-up a hassle using my spray equipment.

NOTE:  Before finishing this project, I could not locate any Deft gloss lacquer at a reasonable price and ordered musical instrument grade lacquer manufactured by Mohawk which worked great!

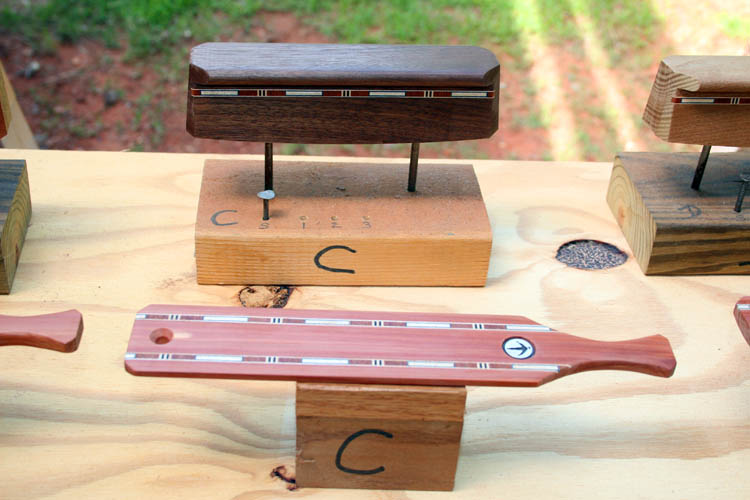

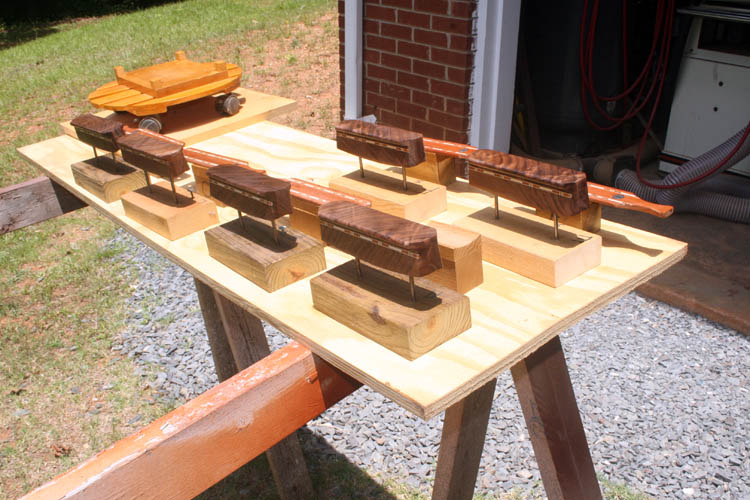

I have six (6) block sets for the call body and the call lid labeled to keep the lid with the body and has holes drilled in the call body holder to keep track of the sealer and finish coats applied.  I could not get a good pix of the calls above due to a bright back light situation.

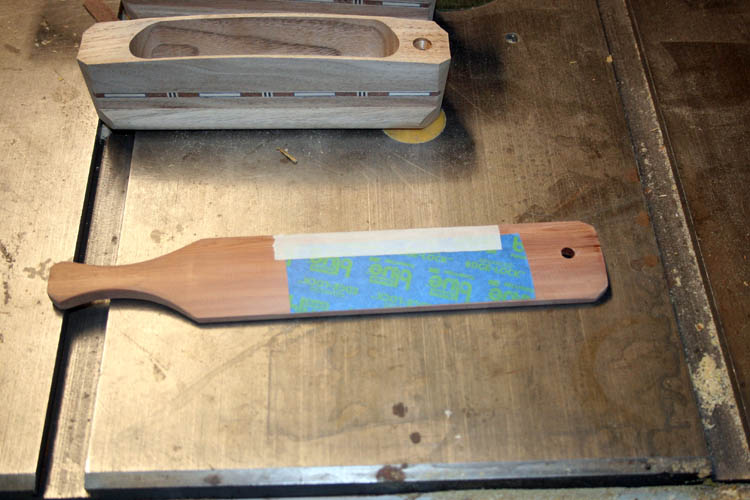

It should be noted that I tape a portion of lid radius to prevent lacquer on the lid area that makes contact with the call body.

After the sealer dries ( a couple hours time), I will spray each call body and call lid with a coat of Deft gloss or semi-gloss nitrocellulose lacquer depending on what I have on hand.  I have on order several cans of Mohawk Musical Instrument gloss lacquer and will use it versus the Deft simply because I cannot find the Deft High Gloss lacquer anywhere in stock.

Once the finish is cured on the calls, I will go over the sound boards with the mating lid with sandpaper and do a final buff with the Scotchbrite pad on the lid and call body and again check the call for sound.

ADDING THE LID SILENCER

All my turkey calls have a lid silencer to help keep the lid from making sounds while going to and from your hunting location.  I use an upholstery nail and 1/4 inch wide elastic material.  I use a scratch awl to (pre-drill) a pilot hole for the upholstery nail.  The length of the elastic material is about 4.5 inches and double the material over and press the upholstery nail through the elastic material.

I use a small brass head hammer to drive the upholstery nail in place.  Some times in hard wood, walnut, etc., the nail will bend and have to make a deeper pilot hole using the scratch awl.

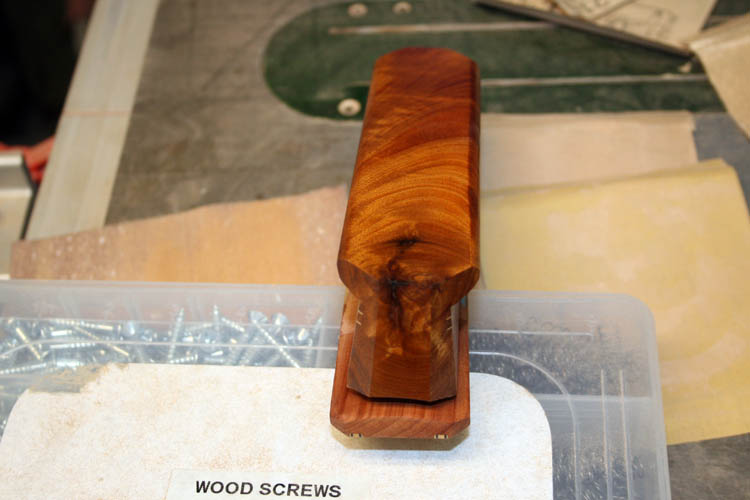

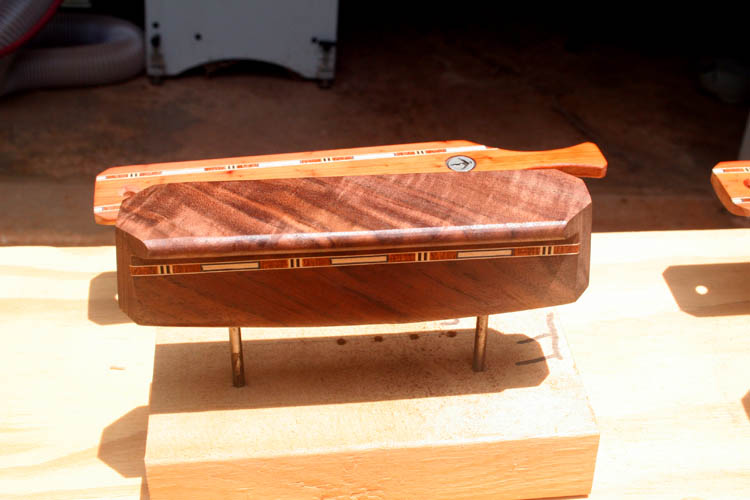

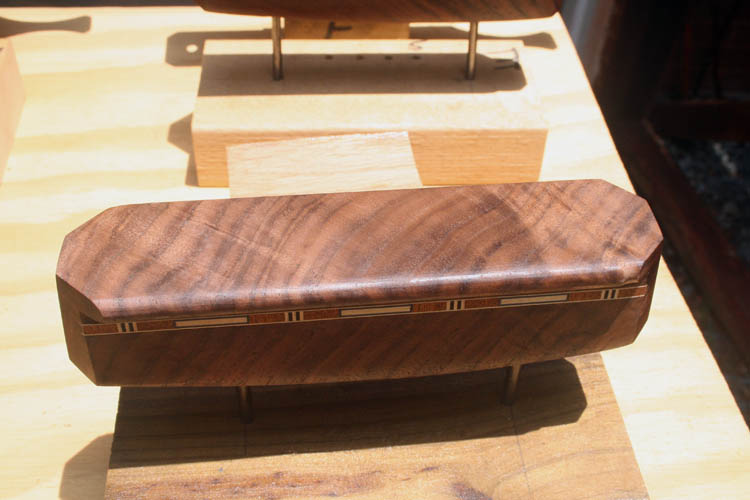

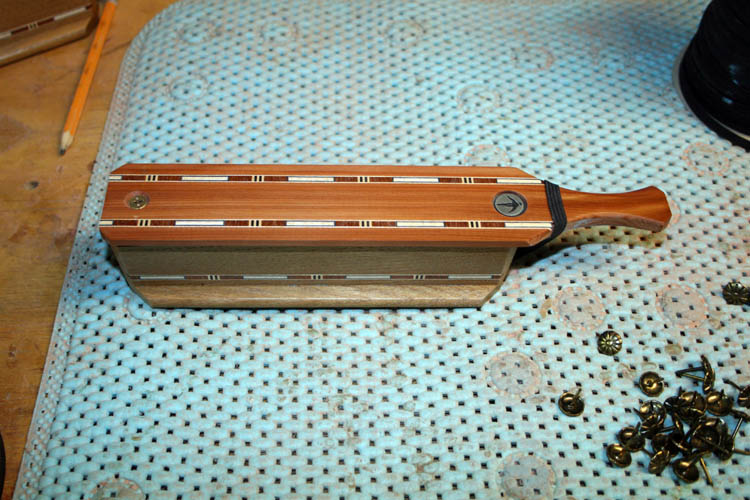

Above is the finished call; ready for signing and dating with a description the wood species and where originated.

I give God our creator through His Son, Jesus Christ our Lord and Savior, the Praise, Glory and Honor in all things!

Web page updated by Bill aka Mickey Porter on 06-03-2022 and 06-04-2022.

FINISHED THE CALLS

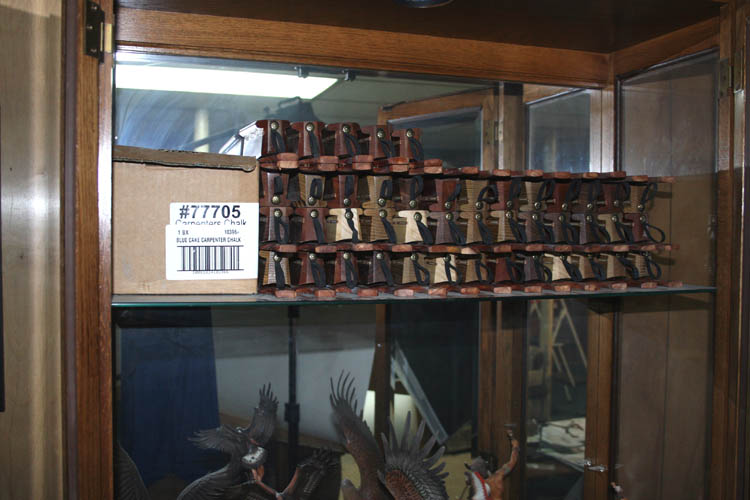

I finished the batch of forty-five (45) calls today 06-16-2022 and will kick back a few days before starting another project.  As stated earlier, I will do a set-up showing how the body of the call is produced from a rectangular block of wood to complete this tutorial on how I make my calls.  However, I plan to look at other projects before doing so and as they say, "Will place it on the back burner."

I kept the only call blank that was butternut for myself simply because I don't have a butternut call for personal use.  Each wood species gives its own distinct sound and tone, but I like the sound of Sassafras the best in my call design.  I guarantee you, there is some turkey in each one of the above calls................grin if you must!

I did other things beside the turkey calls and the lacquer had to dry before finishing each call.  I do not work on Sunday, our Lord's Day which was originally a day of rest, but Christians today use Sunday as a day of worship and praise!

This batch of box calls will be SN 145 thru SN 190.  My earlier calls did not have serial numbers on them; e.g., Custom made by Bill Porter, Wadesboro, NC, Date, Wood species and where obtained.

Web page updated by Bill aka Mickey Porter on 06-16-2022.

FILLING IN THE GAP - BOX CONSTRUCTION

It is about too hot outside to do much of anything, therefore I decided to set-up the fixture/jig for routing out the box call main cavity of which I call mine a torpedo nose taper.

As stated earlier, the mortise jig was stored with a wood box over the top of it and I had all kinds of drill bits and accessories on top of the box.

MORTISE JIG

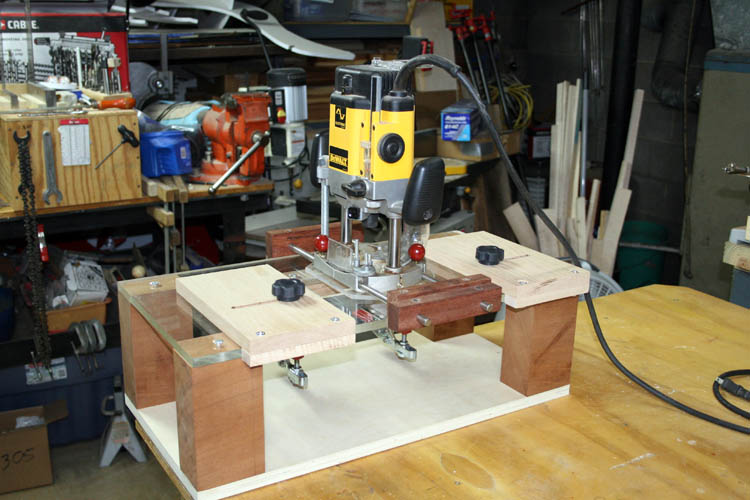

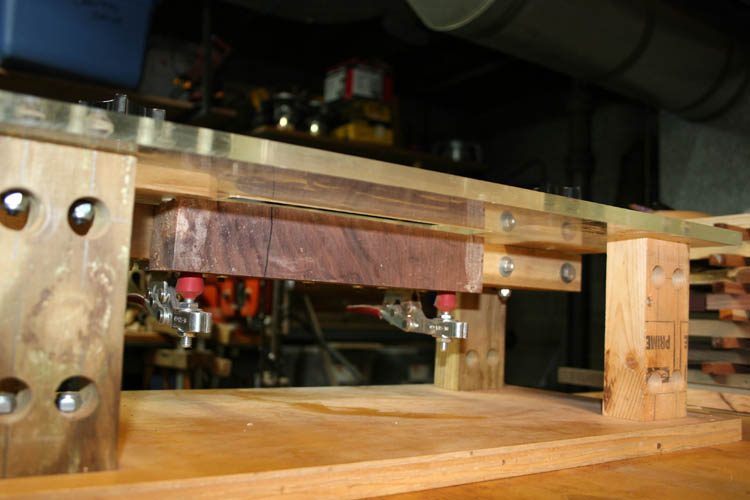

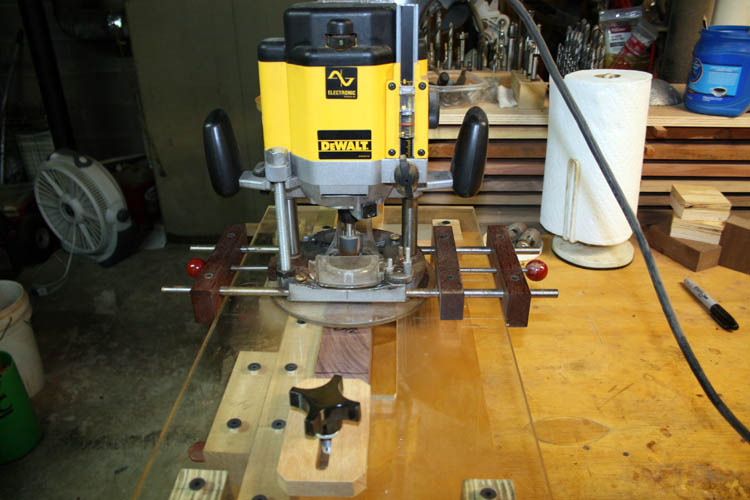

Above is pix of the special mortise jig (Pat Warner design) set-up for routing the torpedo nose taper (cavity) on the box call.  My cut out aka opening in the Plexiglas member is longer than on Pat Warner's mortise jig.  Needed extra mortise length for long box calls.

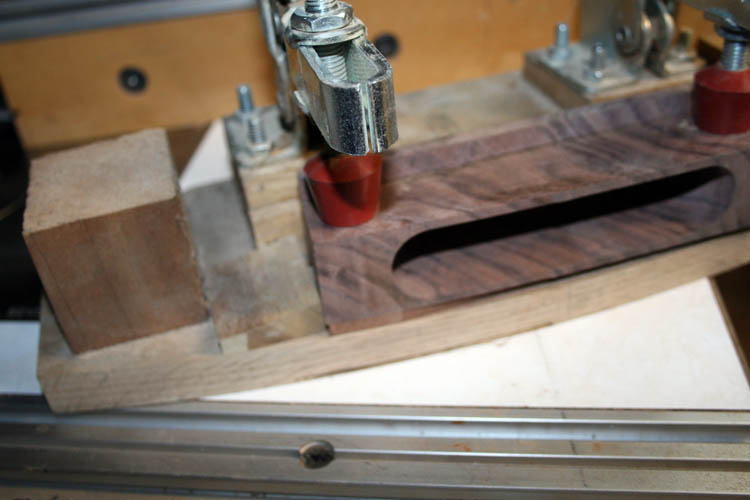

Pix showing the DeStaCo clamps that hold the wood blank it place.  Wood needs to be sized accurately, otherwise the DeStaCo clamps would have to be re-adjusted.  As will be depicted later, I routed the cavity from shorter lengths of Sassafras wood that I purchased from a vender in New York in 2008 and decided to do those which I believe is a dozen blanks.  I had to use adjustable bar clamps and apply pressure from the side of the wood blanks versus from the bottom to keep the wood blank into position due to their shorter length.

DEDICATED DEWALT 3 HP ROUTER WITH SPECIAL BIT

\

The DeWalt plunge router above has the edge guides (made by Pat Warner) tightly adjusted against the side of the Plexiglas mortise jig top and the end stops are preset to give a 5 3/16 inch length torpedo nose taper cavity in the call blank wood.  You can move the router movement right to left by loosing a set screw on each side of the router base casting that allows the router to move right to left on the 3/8 inch diameter stainless steel rods (made by Pat Warner).  Router depth is set to give a 1.6 inch deep mortise and controlled by the calibrated depth stop gauge.  Nothing on the mortise jig and the DeWalt plunge router has changed since the last time I used the jig and router.

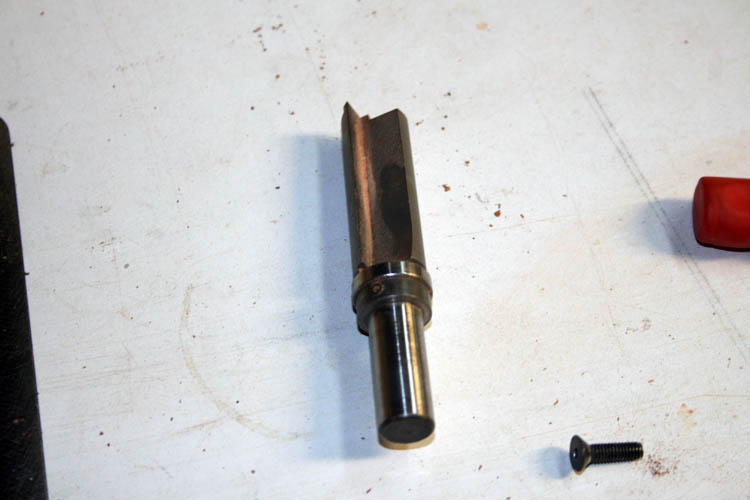

Above two fluted carbide tipped router bit shank extended out above as far as safe to get 1.6 inch depth of cut.  The Plexiglas router base and the Plexiglas mortise fixture top uses up about 3/4 inch of router bit travel/router travel.  I believe the above router bit is around sixteen (16) years old.............grin if you must!  Above time to replace it versus having it sharpened which would change the outside diameter of the router bit slightly.

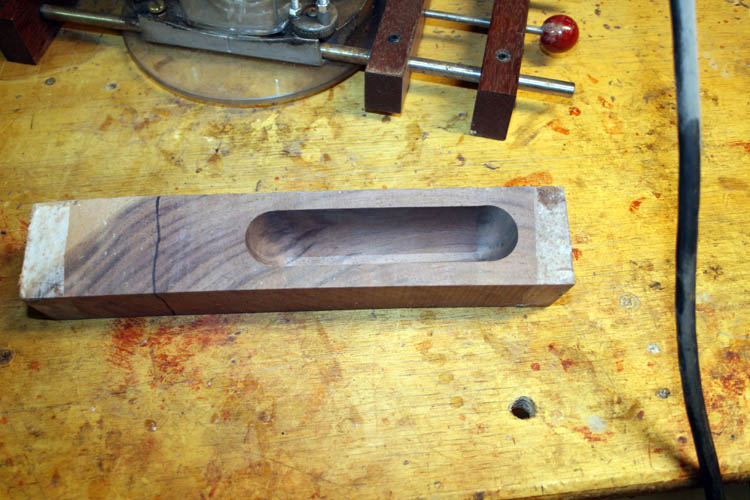

MORTISE EXCAVATED

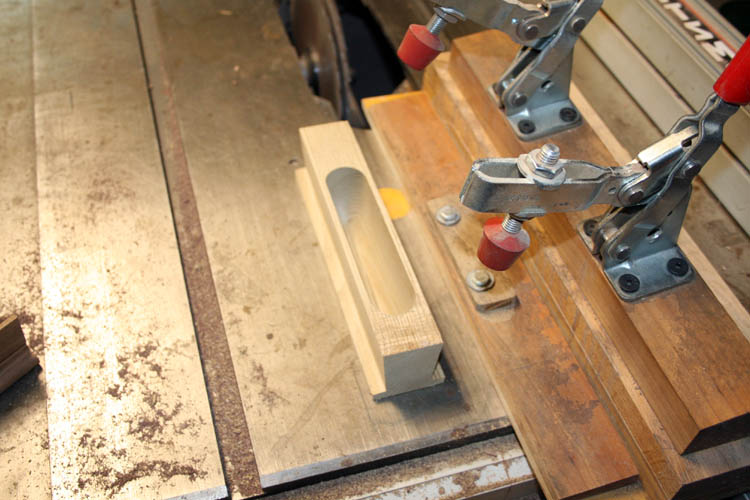

The above torpedo nose taper mortise is clean and mostly burn free, requiring little if any sanding.  The inside width at the top of the mortise is 1.135 inches +-.  I had six (6) figured black walnut blanks that were warped and twisted due to drying out.  They were cut to size while still (green) in MO and sealant placed on each end to prevent cracking. The moisture couldn't go out the ends, but it definitely did go out all four sides attributing to the warp and twist.  I had to do some serious jointer and band saw work to get them half way trued up, since I reference from one side and top of the wood blank in my mortise jig.

It took a little less than two (2) minutes to complete the torpedo nose taper mortise in Sassafras, of which the router bit is sixteen (16) years old never being re-sharpened and would be just a little longer in black walnut.  That might give a CNC machine a little competition for sure for routing the cavity!

OOPS

The above is what happened when I didn't secure properly both ends of the blank in the mortise jig!  Luckily, nothing was damaged including yours truly.  The router bit is rotating clockwise, therefore it pulled the right end of the wood blank away from the guide rail on the mortise jig.

I purchased the above wood and maybe 2 dozen like it to be sassafras, but after routing the torpedo nose taper mortise, it definitely did not have the fragrant sassafras smell.  I will try to ascertain what species of wood this is.

NOTE:  Kenneth Shipley of Shipley Outdoors, Inc.,  5639 Hurricane Road, Cadiz, Kentucky 42211 PHONE: 270-522-9857 identified the wood as Sycamore on 07-21-2022.

The Sycamore wood blank above brings to mind Luke Ch. 19 verses 1-10 about  Zacchaeus who climbed up in a Sycomore tree in order to see Jesus!

Web page updated by Bill aka Mickey Porter on 07-16-2022 and 07-21-2022.

ROUTING MORTISE TIME UPDATE

I set up my general purpose mortise jig and installed a new router bit in the DeWalt 625 plunger router and it took forty-five (45) seconds to complete the torpedo nose taper mortise in black walnut.  A fresh sharp router bit makes the difference and it cut like butter in the black walnut...............grin if you must!

You can see some of the twist and warp in the blanks if you look close.  After truing up the blanks, some were much less than 2 inches square and the base of the call was thinner and the width of the base lip was narrower as well, but ended up making good sounding calls, nevertheless!

After all the black walnut blanks had the torpedo nose taper mortise routed in them, it was time to set the table saw up using a stacked dado blade set and dedicated table saw jig for cutting the side taper.

SIDE TAPER JIG

The side taper jig has the required taper built into it and the blank is positioned over the locator in the center of the jig which matches the width of the torpedo nose taper mortise in the blank.  Dado blades and spacers aka chippers are added for a flush cut with the side of the taper jig and the table saw height is adjusted to give the desired thickness of the base.

As depicted in the above pix, there is wood hang over, of which the dado blades will cut it flush with the jig and gives the call sides the required taper.  NOTE:  I later went back and installed a 10 inch diameter crosscut saw blade to the left of the stacked dado blades to cut off any excess over hang of the call base and removed one of the chipper dado blades for the required flush cut of the dado blades.  It had been a while since using the combination of 10 inch diameter crosscut saw blade with the required dado blades and chipper blade.

Pix showing the call blank after the sides are tapered using the jig and stacked dado blades.  The thickness of the sound boards are .152 +- inches and will be thinner once the top of the sound boards are tapered using a jig and router table with flush cut carbide tipped bit.  I will route the torpedo nose taper mortise in the balance of the sassafras call blanks and set up to cut the call body ends to the correct taper and length using the miter saw

ADDED "CUT-OFF" BLADE TO STACKED DADO

I am using my regular 10 inch crosscut saw blade which has about a .135 inch kerf +-.

An end view of the regular 10 inch blade with the stacked dado blades.  The 10 inch blade cuts the over hang from the base.  Wood blank is oversized intentionally for this to happen.  The eight (8) inch diameter dado blade set works great with my box call design measurements.

A zoom out view of the side taper jig and blade set-up.  I push the jig into the saw/dado blades with my right hand holding the body of the DeStaCo toggle clamp.  This operation is dangerous, therefore extra caution and safety is required.  You could make some type of safety enclosure  referencing off the left miter gauge slot shielding most of the exposed blade.

CUT END TAPER AND LENGTH ON BOX CALL BODY

I took sequence pixs of the six black walnut call bodies, however I deleted them from the camera and having to take a few pixs now.............grin if you must!

I like to keep the miter saw set at 90 degrees and make a jig to cut angles when I have more than a few to complete.  Even with stops on the miter saw, it is sometimes trouble some to get them re-set back to 90 degrees as perfect as possible.

The laser produced line is a tremendous aid for positioning your cut.

A simple pencil line mark used as a length stop gauge.  Nothing high tech there...........grin if you must!  I could make a fixed length stop gauge, but it would have to be located outside the path of the end of call since there could not be a stop in the path of the call because I first cut one end of the box taper.

NOTE:  The last call bodies I made, I cut one end to length on the entire lot and then set a stop block for the length so each call body will have the same length needed to reference in the vertical radius router jig concave route at each end of the call body.

ROUTING PROFILE FOR THE SOUND BOARDS

I use a 1/2 inch diameter two fluted carbide tipped router bit which has a cutting length of two (2) inches.  The bit has a flush cut bearing at the base that rides against the pattern profile to cut.  If you cut against the grain on the thin sound boards, you will rupture and/or tear out the sound boards and also chip wood from the end of the box call.  I flip the box call over and complete the cut, continuing to route with the grain.  With the router table, you move your work into the router bit, right to left.

Pix of the profile jig for the sound boards taper.  There is less than 1/8 inch of wood to remove at the center of the sound boards and much more toward the end of the call.  The profile jig rides against the ball bearing at the base of the flush cut router bit.

Pix looking at the bottom of the jig and you can see the over hang that the router bit will remove.

The profile jig determines the amount of wood removed from the box call body.  The jig has stops to the rear to position the call and to the left.  There is a tapered wedge of wood underneath the call which keeps the call sound boards vertically orientated.  The large DeStaCo clamps with rubber pressure pads keeps the call securely attached to the jig.

Another view of the jig with the box call ready to be profile routed.  The Porter-Cable 3 1/2 HP router doesn't even strain with no more material removed in this case.

A close up pix of the box call sound boards profiled to the shape of the jig.

There are three (3) more router table jig set ups to complete the call body and one of them has been shown already being routing the slot for the wood purfling aka wood marquetry.

I think I will call it a day, of which this has been a productive day.

TOTALED A 35MM 18-55MM CANON ZOOM LENS

While taking pixs of the above routing operation, the camera strap got caught on the table saw fence guide as I was moving, pulling the camera from my hands, of which the camera landed on the concrete floor and plastic pieces from the front of the lens went flying.  The glass lens didn't break, but the camera lens barrel was badly warped rendering the lens unusable.  Luckily, I had an identical lens on an earlier model Canon 20D that our Son, Bill Jr. gave me, of which the camera electronics gave out, but the lens was still good!

I have used a 35MM film camera Nikon F2AS since 1975 and with the digital age, donated it to an Antique Store,  This is the first major camera accident I have experienced.

You might be thinking, why not repair!  The lens is not too expensive, but a repair of said lens would be major bucks.

Web page updated by Bill aka Mickey Porter on 06-18-2022.

ROUTE VERTICAL RADIUS TO THE END OF BOX CALL

Each end of the box call has about a 2 1/4 inch concave radius routed to match the lid convex radius.  I use a profile jig I made in conjunction with a 1 inch diameter x 1 inch length two fluted carbide tipped router bit that has a flush bearing with the outside diameter of the router bit.

The length of end of the box call is a little longer than my original ones, therefore the flush cut router bit didn't have enough length for a smooth blending of the two areas...........my bad.  I had to use a drum sanding disk on the drill press and later used a Dremel tool and 3/4 inch diameter sanding drum, of which the Dremel worked better, more control.  I  believe I used a 2 inch length flush cut router bit instead of the 1 inch diameter x 1 inch cutting length router bit on my earlier batch of call bodies...my bad for sure!

The bearing rides against the profile jig and the router bit removed the over hang.

ROUTING BASE OF CALL

I use a 3/8 inch "bull nose" and/or a 1/2 inch bull nose aka half round radius router bit to form the radius on the lip of the box call base mounted in the router table.  Router table fence (auxiliary curtain) is adjusted for the width and depth of route controlled by the router crank lift mechanism.

My router table has both in feed and out feed fences and I have trouble from time to time getting snipe at the end of the router because the out feed fence is not adjusted properly.  I have shimmed the fence and placed masking tape on the fence to built it up several thousands of an inch which works for a while.  The more "fail safe" method is to use a drop down curtain attached to your router fence and have a cut out for the router bit if needed.

With the side of the box call riding against the auxiliary curtain fence, snipe is eliminated.  I need to cut a piece of 12MM Plexiglas, add vertical slots for adjustment and affix it to the miter slots in the router fence with appropriate bolts/knobs.

FINISHED THE FIGURED BLACK WALNUT BOX CALLS

Today is 06-21-2022 and finishing up the six (6) figured black walnut box calls.  I am reserving one of them for myself and using an inlaid mother of pearl lid I did a few years back and finally got around to using it.  The other five (5) calls will be given to our Grandsons this coming Christmas 2022, our Lord willing of course.

The figured black walnut was hard as a rock and surprised it didn't splinter out during the manufacturing process!  I have another coat of lacquer to apply to the call bodies and lids and maybe "kick back" a little, but when I get antsy, I have to be doing something.

These six figured walnut box calls will be SN 191 thru SN 196.  My earlier calls did not have serial numbers on them; e.g., Custom made by Bill Porter, Wadesboro, NC, Date, Wood species and where obtained.

The figured walnut calls have no inscription on the base of the call.  I didn't want to take away from the beauty of the figured wood.  The calls have printed Bill Porter and the date made on the inside of the torpedo nose taper sound boards.

BILL PORTER'S SHOW CASE CALL

I inlaid the above lid a long time ago and finally got around to putting it on a call base worthy of the lid.  This call will be for my display case, however I might call an ole long beard in just for fun and not fire a shot!

The above show case call gifted to our son back in July, 2023 as a birthday present!

END OF BOX CALL CONSTRUCTION TUTORIAL

This concludes the pictorial tutorial with comments how I make my turkey box calls.

I will finish the figured black walnut calls and as stated earlier, five will be reserved for our five (5) Grandsons.  I will probably keep one of the six calls for myself for display.

Hope this tutorial helps someone and the routing techniques and jig designs I use will work for other woodworking projects as well.

God bless each and every one of you, and I give God our creator, the Praise, Honor and Glory through Jesus Christ our Lord and Savior in all things.

Web page updated by Bill aka Mickey Porter 06-21-2022.

SET UP GENERAL PURPOSE MORTISE JIG FOR BOX CALLS

I already stored away my dedicated mortise jig for the turkey box calls and decided to set-up my general purpose mortise jig for the box calls.

The reason being, I inventoried my call wood blanks and have a good number that was purchased and already trued up being about 2 inches square and 8 to 25 inches in length.  I have a dozen or more of walnut blanks that have some warp and twist in them, of which will need to be straightened out before doing the torpedo nose taper.  On second thoughts, I doubt I will process those warped and twisted blanks.

While doing the set-up, I placed a new tapered router bit in the router collet and made a few test routes setting the depth stop and width.  The DeWalt 3 HP plunger router base casting had red round knobs that lock the east to west movement of the router onto the 3/8 inch diameter router base stainless steel rods and was not tight enough allowing the router to slide slightly east to west making a non-perfect torpedo nose taper in the call body blank, which might be salvaged.  I replaced the red knob brass screws with regular slotted flat head screws and was able to put plenty of torque with the flathead screw driver.  l will not know for sure until I cut the sound board taper using the table saw and taper jig.

I prefer the end stop blocks orientated in the north to south direction versus the east to west orientation as I have on my dedicated mortise jig for turkey box calls.  The black knobs will keep the stops in place, but like a little more assurance with the clamps, however one clamp is in the way slightly.  I will see if there is enough reach with the clamp to place in on the left side of the jig.

Since this is my general purpose mortise jig, I will not make permanent set stops as per my box call dedicated mortise jig.

I will unbox stored turkey box call body blanks and try and get them machined for later finishing.  At the moment, I have a little less than three dozen box call lids with the basic machining completed on them and do not plan to set up the radius cutters for the lid.  I have a quantity of machines lids that have the grain running in the wrong direction and will not use them.  The vertical grain orientation works the best on the box call lids in my humble opinion.

The black walnut blanks had some warp and twist to them and jointed the bottom of the call and the side that will rest against the longitudinal fixed fence and used 12 inch bar clamps instead of the DeStaCo aka generic clamps which indexes off the bottom of the wood blank.  The Sassafras blanks were 8 inches in length and both DeStaCo toggle clamps were originally set up for 12 inch length wood blanks.

CALL BODY BLANKS BEING MORTISED

I set the above mortise jig up on 06-25-2022 after spraying lacquer on five (5) sassafras calls with cedar lids.

Above pix of the torpedo nose taper mortise cut into black walnut, osage orange, butternut and sassafras completed on 06-27-2022.  It took only forty-five seconds to complete the mortise in a black walnut blank, whereas it took 2 minutes to complete the torpedo nose taper mortise in sassafras wood with an old apparently "dull" router bit.  Sharp cutting tools make a difference and are much safer to use.

Web page updated by Bill aka Mickey Porter on 06-26-2022 and 06-27-2022.

FINISHED THE SOUND BOARD TAPER ON THE BOX CALLS

I installed the 10 inch diameter crosscut saw blade and the dado blades with a chipper blade and a small spacer to give the proper cut in the call body blank.

With the new tapered router bit, it was several thousands in diameter smaller than my original tapered router bit and the torpedo nose taper mortise would not fit onto the locator on the sound board taper jig and had to sand the locator down until it fit properly.  The sound board thickness was a little thinner and before sawing the entire lot of box call blanks, I routed the sound board taper, vertical taper on end of call body, cut the angle on each end of the call body blank.  I drilled the pilot hole for the lid screw and installed a lid from another finished call to see how the call sounded and it sounded great.  I believe the wood was butternut.

I then routed the sound board taper on all the call body blanks that I had routed the torpedo nose taper mortise.

The osage orange blanks were hard as a rock.  Two of the six call bodies "blew out" aka ruptured from the routing operation; e.g., shaping sound boards and routing vertical radius on end of box call.  I will sand the vertical radius on the end of the box calls versus trying to route the radius.

I finished all the machining on the above call bodies on 06-29-2022 sans the 45 degree end taper which is normally done after the wood marquetry aka wood purfling is installed.

I don't think I will post any additional pixs on this page, but will complete half a dozen calls at a time until all are finished.  I had enough wood marquetry aka wood purfling style # 4 for about three (3) dozen additional calls.

Web page published by Bill aka Mickey Porter on 06-01-2022 and updated on 06-28-2022.

NOTE:  I recently inventoried and found additional call wood blanks and thinking about finishing them up.  I have a good amount of black white "stitch" wood purfling that was used on pre-war Gibson Granada banjos and will use it, since I only have three pieces left of the style # 4 wood purfling aka wood marquetry strips.

I prefer the style # 4 wood purfling, but it is now too expensive to purchase from retailers here in the USA.

Web page updated by Bill aka Mickey Porter on 07-15-2022.

INVENTORIED MORE CALL BLANKS AND LID MATERIALS

As stated much earlier, I inventoried the cedar wood boards I had on hand and selected the ones with as much vertical aka quarter sawn grain as possible and added the process under the lid construction.

I still had a good amount of call blank wood in sassafras, black walnut, butternut and poplar and decided to process a good portion of the woods except the black walnut which is twisted and warped, even though there were some blanks that had good figured grain.  My duck call maker friend might be able to use the black walnut blanks.

Below is a pix of the call body blanks with the torpedo nose taper completed and cut to approximate length.

There are several operations to complete including cutting to final tapered length, routing the sound board taper and routing each end of the call for a 2.25 inch radius that matches the radius on the lid and cut the end taper .

I will route the groove for the wood marquetry aka wood purfling on the call body as needed since I only have a quantity of the black/white stitch wood purfling as depicted earlier and drill the tapered hole for the lid brass wood screw and spring.  I normally test the call and lid out for sound before adding the wood marquetry aka wood purfling for obvious reasons.

NOTE:  The above call bodies have all the basic machining completed except routing for the wood purfling and stored in a plastic tote, if an when I decide to finish them, but at the moment I don't plan to do so.

Web page updated by Bill aka Mickey Porter on 07-23-2022.

PORTER CUSTOM CALLS GOING SILENT

When my current inventory of turkey box calls are sold, I  do not plan to manufacture any additional calls.

Web page updated by Bill aka Mickey Porter on 07-23-2022.

I NO LONGER SUPPORT NWTF

I no longer donate calls to NWTF chapters or support the organization due to alcoholic bars set up with free drinks as a means to inebriate potential high dollar spenders and bidders at their banquets.  This is a disgusting and immoral way to conduct business to raise money in my humble opinion!  Also, the usage of "bar maids" (literally and figuratively) to serve the drinks and assist in the auction is low class.  When you are of the world, this is a normal protocol.

LEAVING ON A SPIRITUAL NOTE

If you do not know Jesus Christ as your Lord and Savior, please take this moment to accept him by Faith into your Life, whereby Salvation will be attained.

Ephesians 2:8 - 2:9 8  For by grace are ye saved through faith; and that not of yourselves: [it is] the gift of God: 9 Not of works, lest any man should boast.

Hebrews 11:1 “Now faith is the substance of things hoped for, the evidence of things not seen.”

Romans 10:17 “So then faith cometh by hearing, and hearing by the word of God.”

Open this link about faith in the King James Bible.
